Product Description

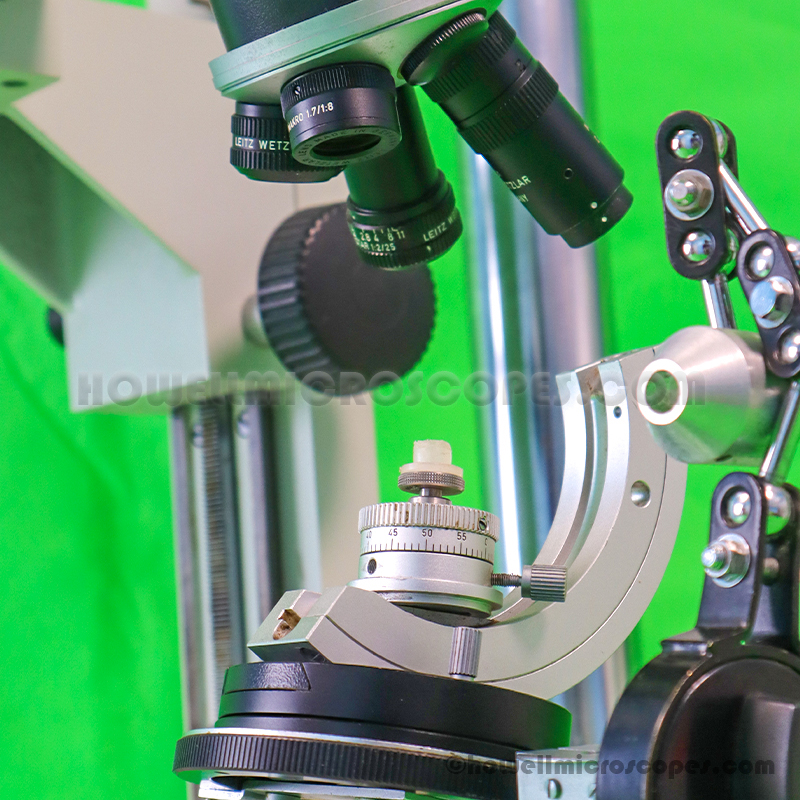

Objective:
- Marked “Leitz Wetzler Germany”
- Makro 1.7 / 1:8. Adjustable 8-32.
- Photar 1:4 / 50. Adjustable 4-22. Part#549027.
- Photar 1:2 / 25. Adjustable 2-11. Part#549026.
- Makro 0.8 / 1:16. Adjustable 16-44. Part#549031.
Eyepiece:
Leitz PeriPlan 10x. High eyepoint for ability to use eyeglasses. Marked “Leitz Wetzler Germany”
Head:

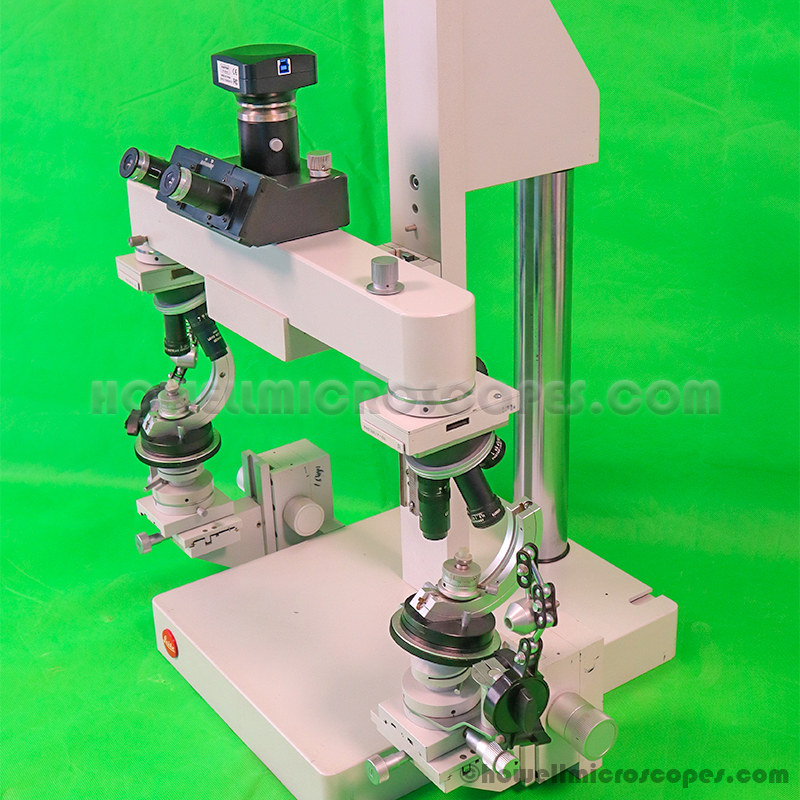

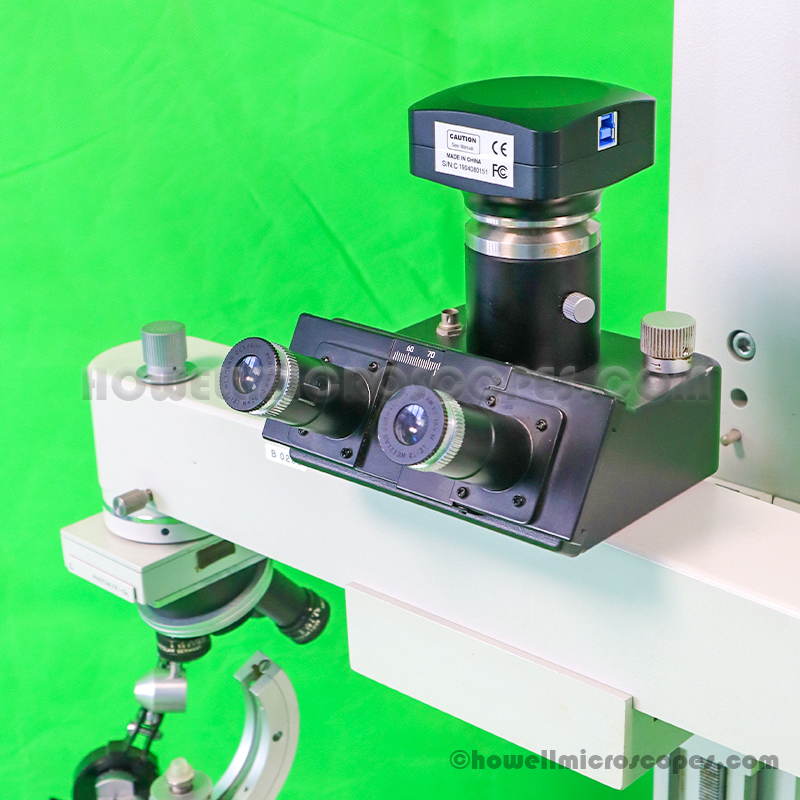

Trinocular head for attaching photographic equipment. Includes Optem B-Clamp, part# 25-70-89. This is on the top of the trinocular port. It provides a standard c-mount with lens system for attaching various camera equipment.

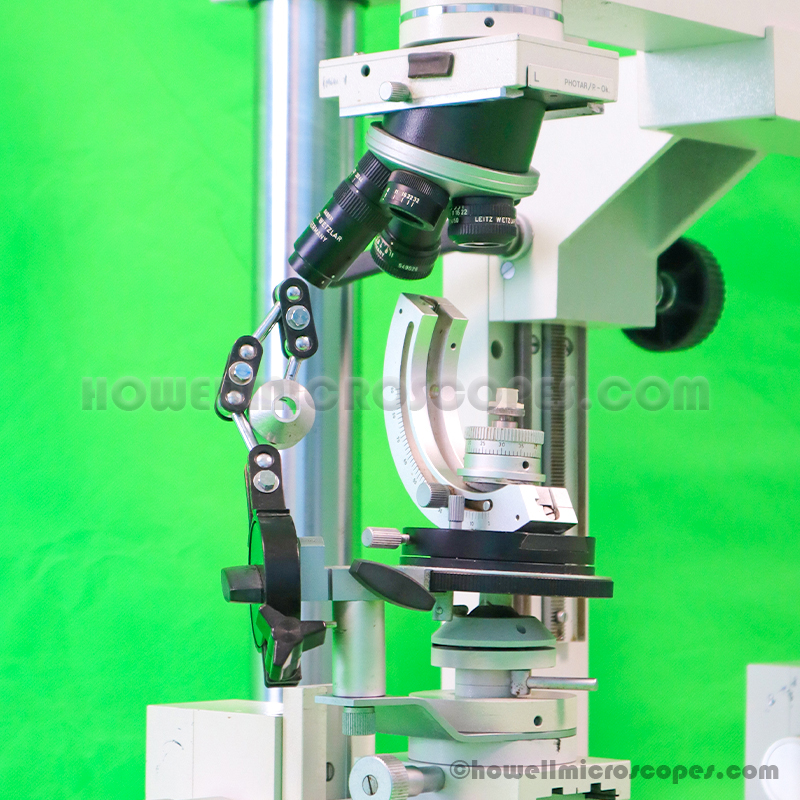

Stage:

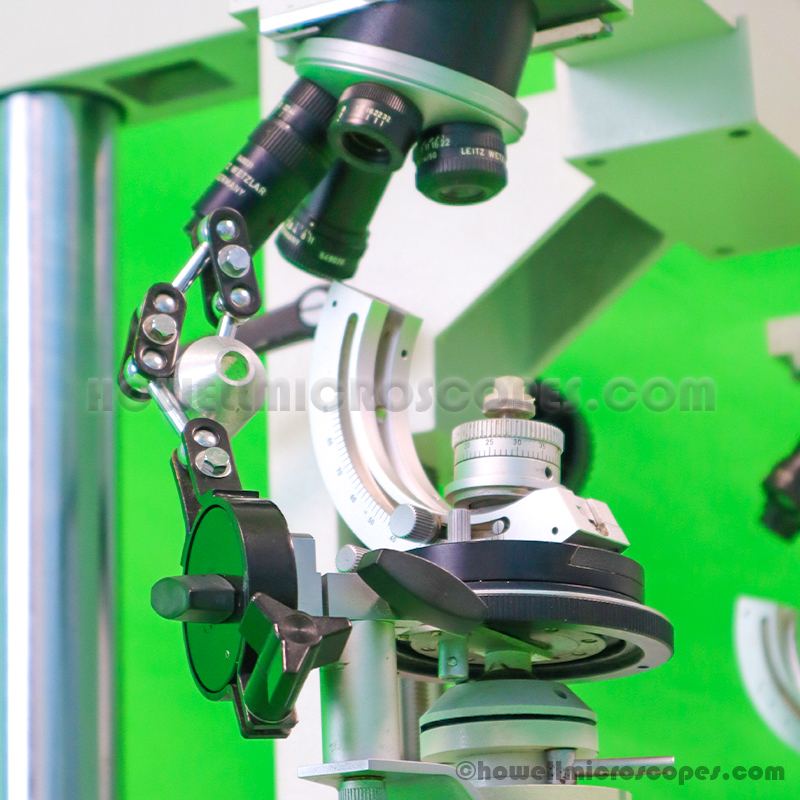

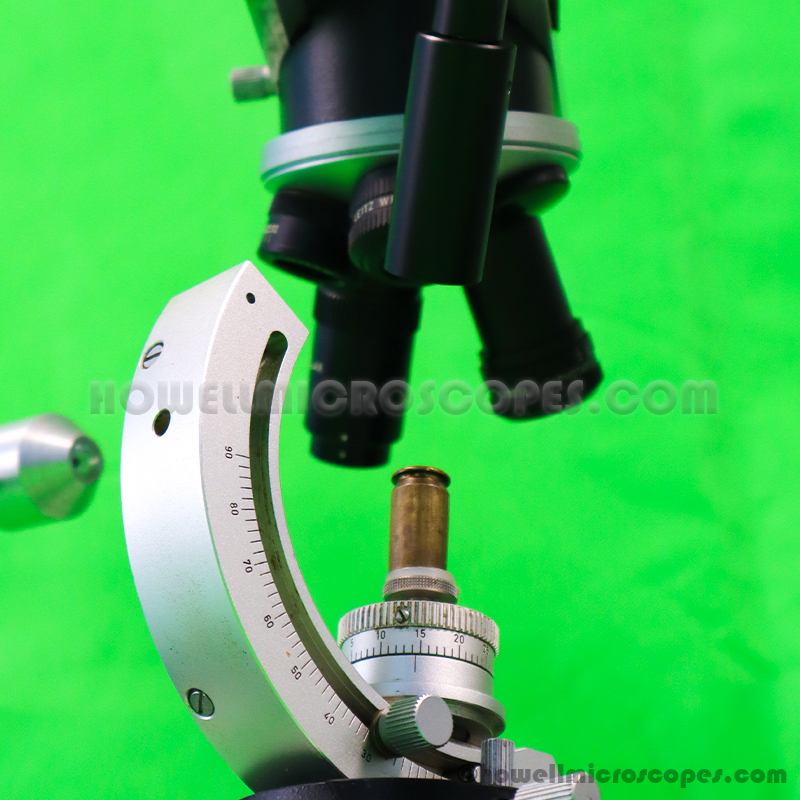

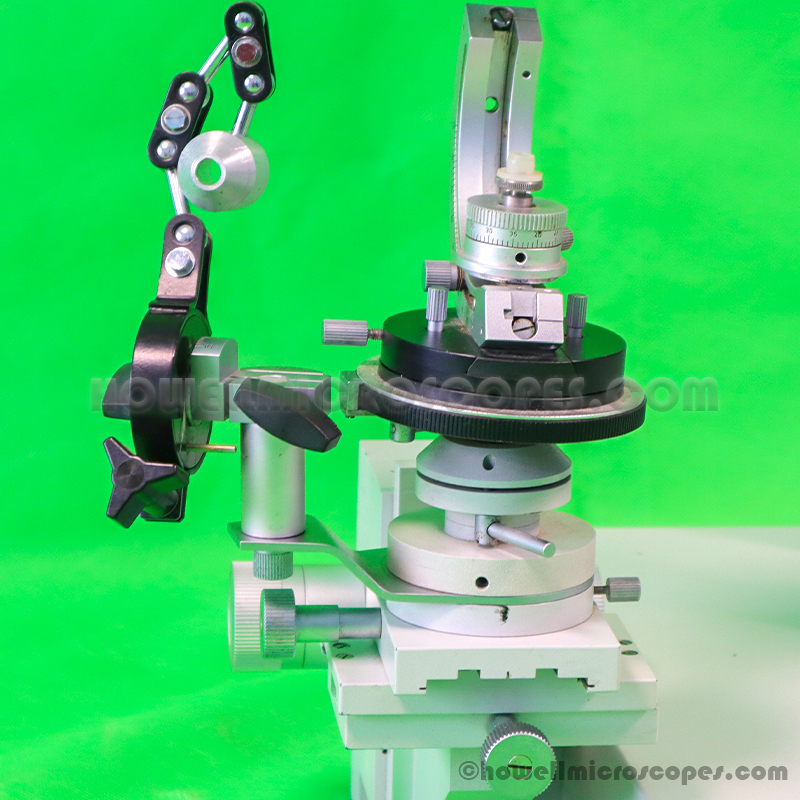

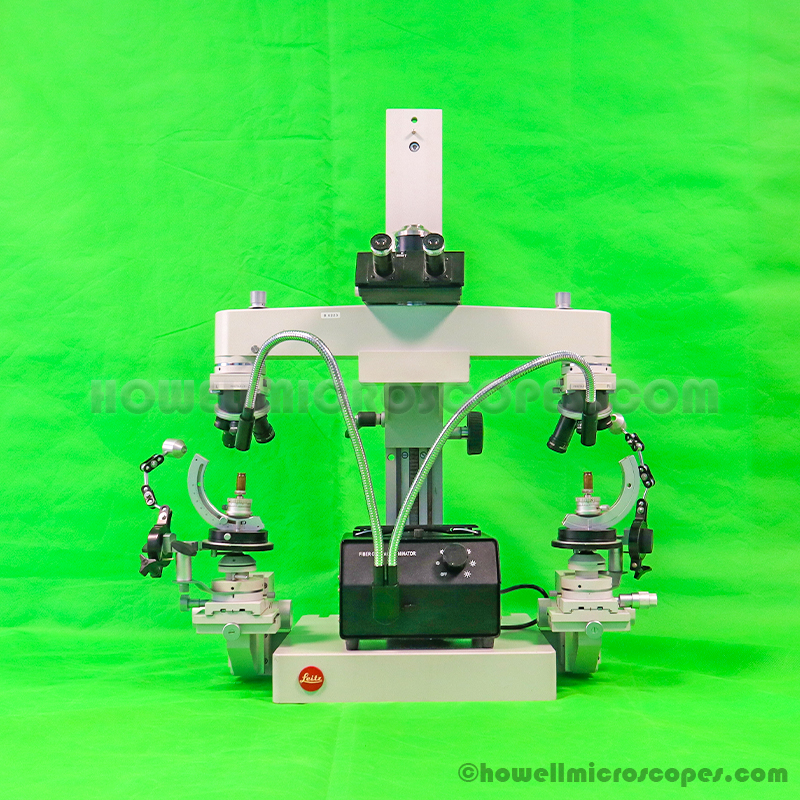

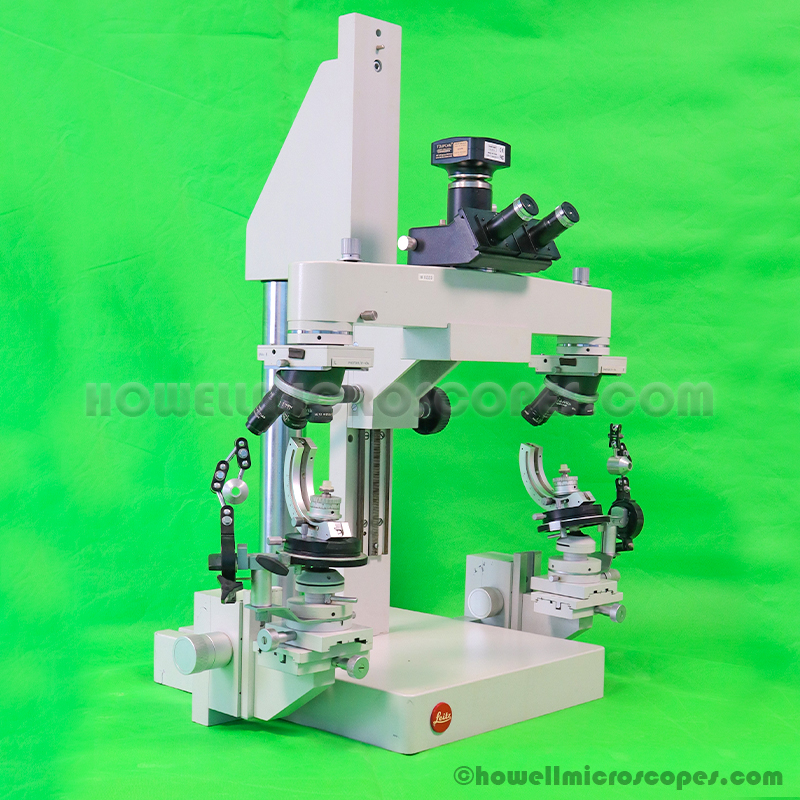

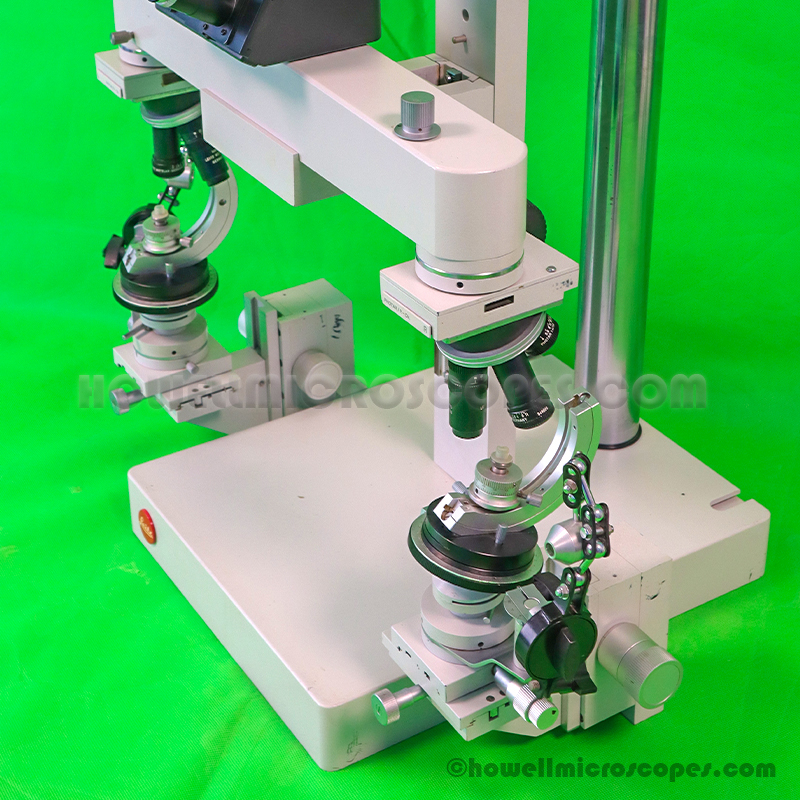

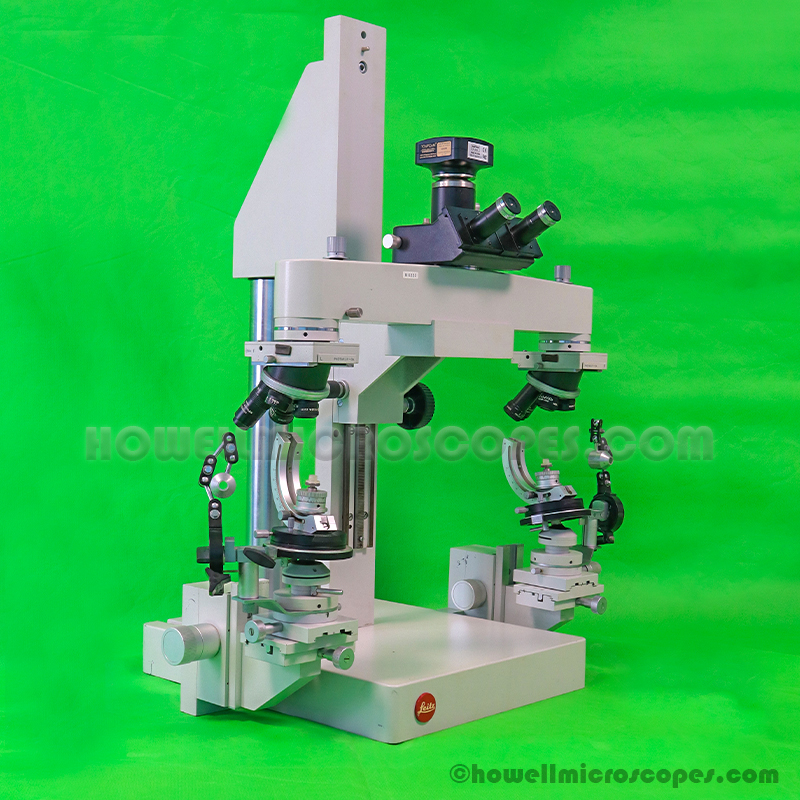

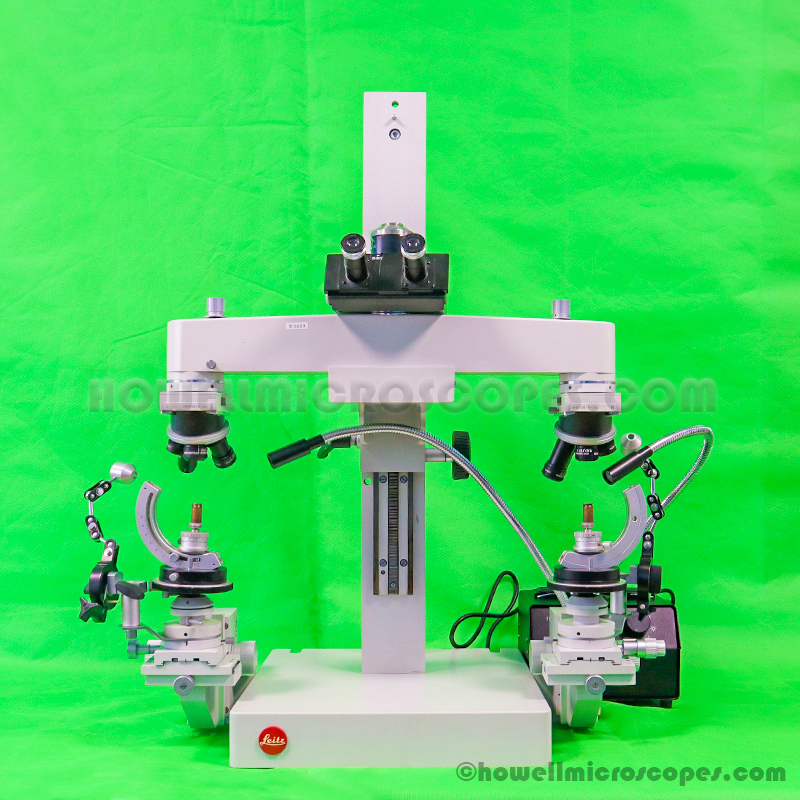

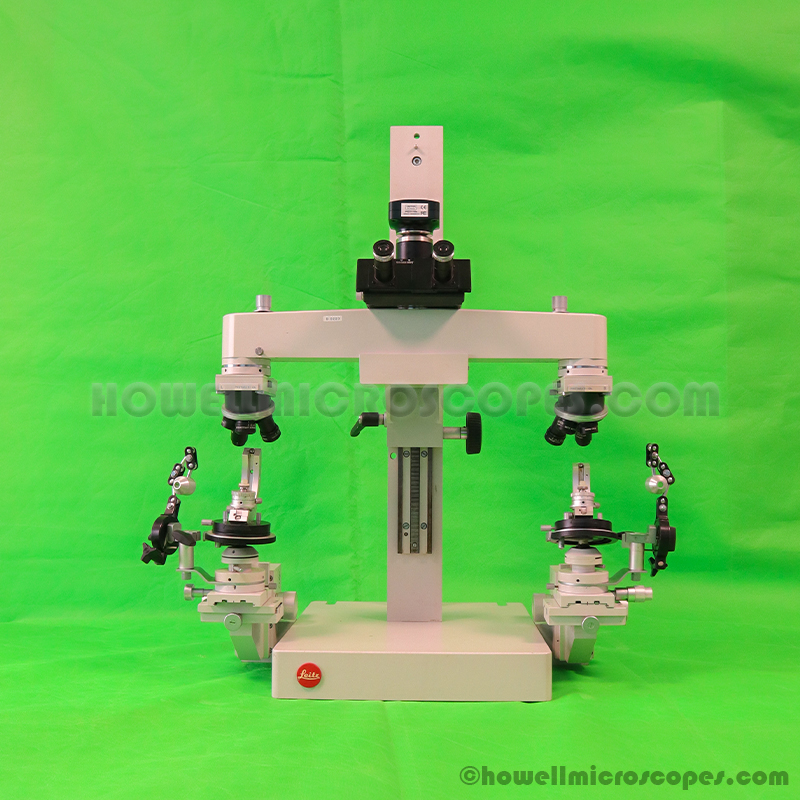

This comparison microscope has a stage on both sides. On top of the stage is the specimen (bullet and cartridge) holder. The bullets and cartridges are mounted here for examination and comparison. The X -Y stage movement knobs are used for moving the bullet (or cartridge) to get it in the proper field of view.
Condition:
This is a reconditioned used microscope. It is several years old. However, it is in excellent working condition.
We do not have the actual user manual for this equipment. However, Leica has a new model that has some similar features. Reviewing this manual will benefit in the understanding of the Leitz model. Click this link: Leica FS M Comparison Microscope Operating Manual
