Product Description
Trinocular Photography Port
•Photograph Your Own Specimens!

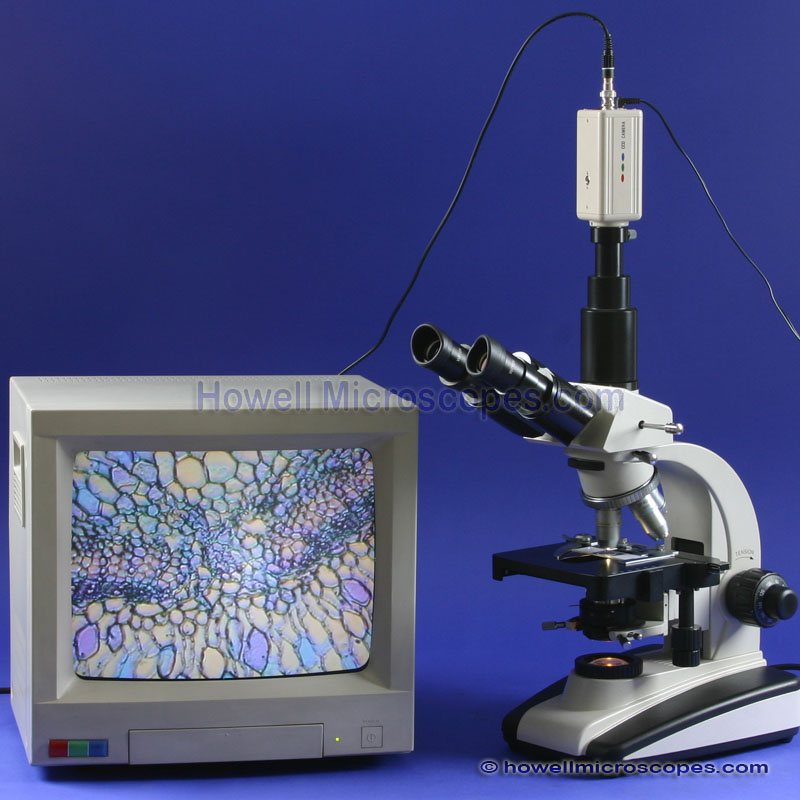

•Have Your Own Complete Digital Video Microscopy System!
•Capture Images With Your Computer!
•Display Images on a High Resolution
•Videotape What You See Under the Microscope!
•Versatility – Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
•Other (not included) cameras and Video cameras. Call or Email us your specific requirements.
Special Features
•Unique Ability to have image in both oculars and photography port simultaneously. This is perfect for training as the binocular eyepieces can be viewed by the Instructor, and students can watch the viewing screen. Most trinocular microscopes lose light in one ocular when light is diverted to the photography port. This microscope has the ability for 100% of light in both oculars, or divert light and get 20% light in oculars and 80% in trinocular.
•Features 30mm eyepiece ocular tubes! Most compound microscopes are 23mm. The larger size allows for less eye strain, much easier viewing, and a larger and better quality image! After looking into these awesome eyepieces, you would never want a smaller 23mm ocular! Before buying a different scope, ask if it has the cheap 23mm oculars!
Video and Photography
•Capture 3MP pixel digital still and digital video via the USB input on your laptop computer.
Eyepieces and Magnification
•Eight Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x and 1600x.
•Two Eyepiece Sets Included: 30mm Diameter Wide Field 10x and Wide Field 16x.
•Four Plan DIN Infinity Corrected Objectives: 4x, 10x, 40x, 100x (Oil Immersion).
•These Semi-Plan Objectives are Better Quality and More Expensive than the Cheaper Achromatic on most Scopes.
•Spring Loaded 40x and 100x Objectives to Protect Slides.
•Reverse Facing Quadruple Nosepiece! A Better Design that allows Easier Access to the Slides since Objectives are Pointed Out of the Way!
Illumination
•High Wattage Variable Intensity 3W LED Transmitted Base Illumination.
•If you find a cheaper scope, ask if it is made to accomodate the higher wattage 3W bulbs that provide a Brighter Image. It is Important for Regular Brightfield work and Essential for Phase Contrast and Darkfield.
•Koehler Illumination System with Focusable Field Diaphragm on Base to allow for Better Control and more Efficient Use of Light Source. This gives Improved Image Quality!
•Koehler is Important for Regular Brightfield Work and Essential for Phase Contrast and Darkfield.
•Few Scopes have the More Expensive Koehler Illumination System. If you see a Cheaper Scope, ask if it has Koehler.
Microscope Head Details

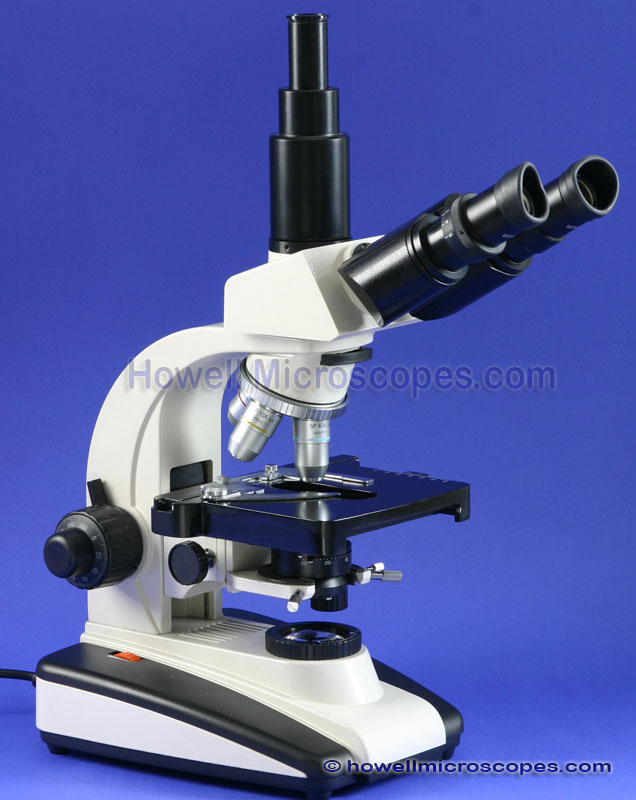

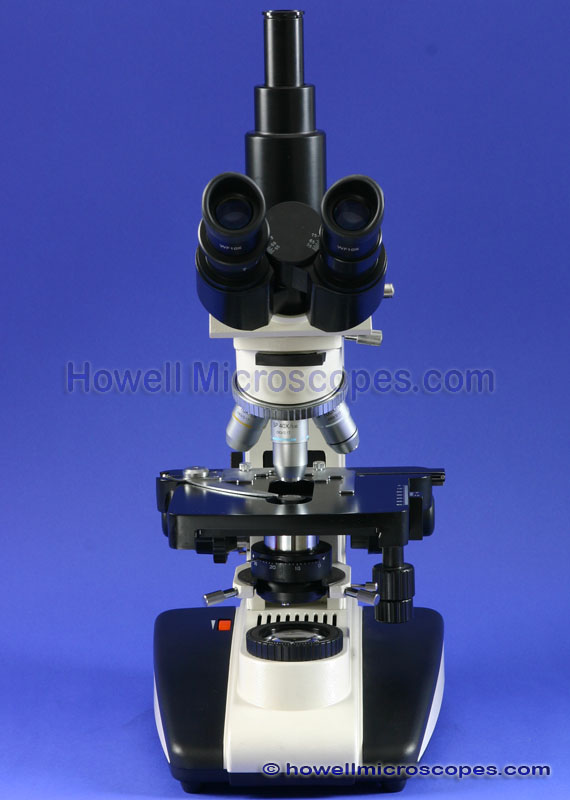

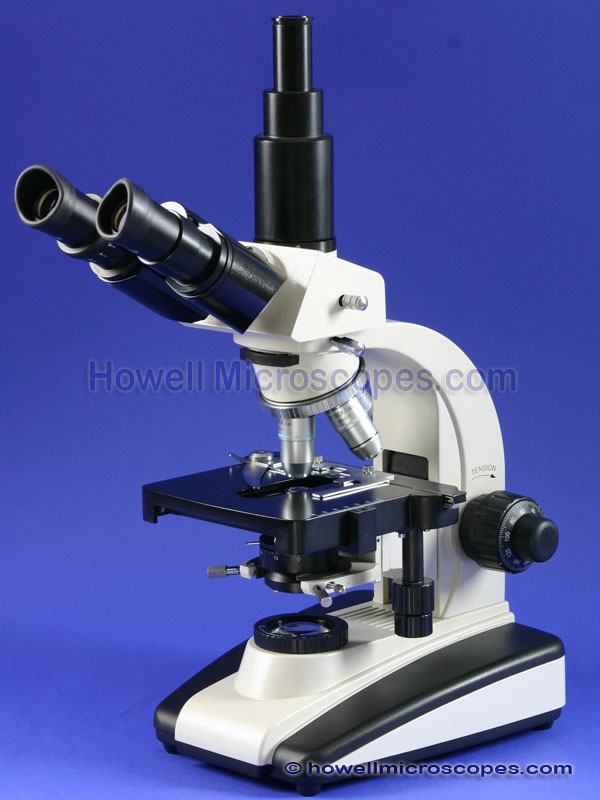

•30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
•Adjusts to the Distance Between your Eyes: 55 to 75mm InterPupillary Distance.
•Diopter Adjustment to Correct for Your Specific Vision Needs.
Condenser – Iris – Filters

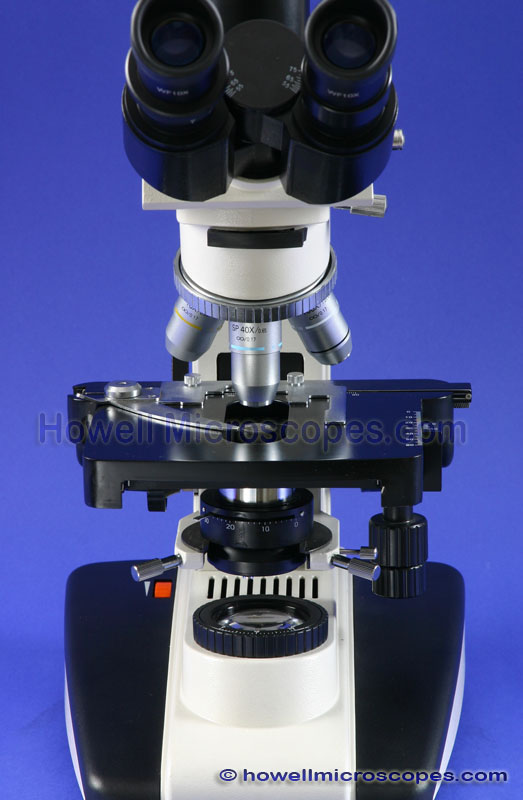

•1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.
•Condenser Alignment Screws.
•Rack and Pinion Steel Gears for Easy and Better Condenser Movement.
•Three Filters Included: Blue, Green, Yellow.
Stage Specifications

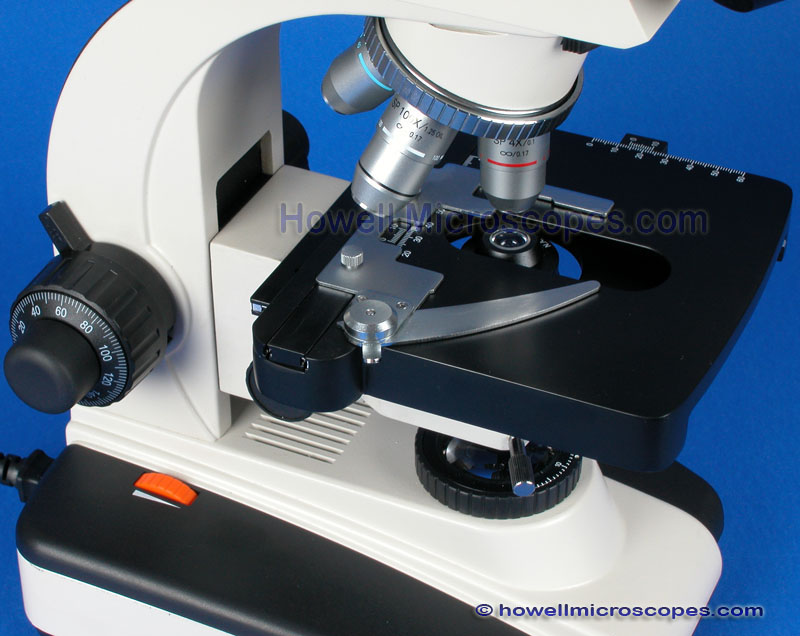

•Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 153 x 145mm.
•The Stage Movement in the Longitudinal Y-Direction is a Great Option Found Only on More Expensive Models!
•Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 80mm (X-Direction – Slide Movement) x 52mm (Y-Direction – Stage Movement).
Focusing

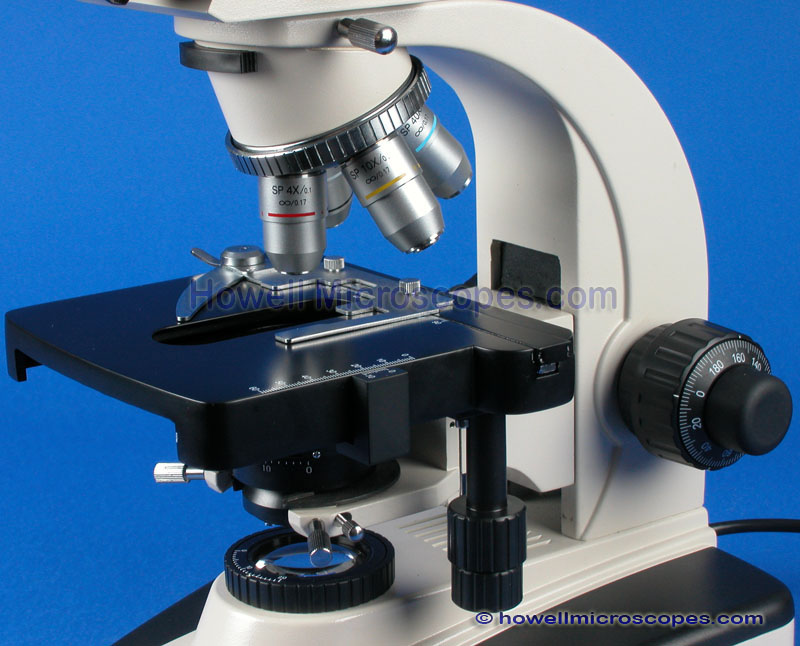

•Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
•Coarse Adjustment Travel Range: 20mm. (Stage Movement Distance Up/Down).
•Fine Adjustment Division: 0.002mm.
•Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.
•Tension Adjustable Coarse Focusing.
Frame – Base – Size – Weight
•Total Overall Height of Microscope: 495mm.
•Instrument Weight: 18 lbs.
Included Items
•Includes: 1x cmount , phototube, instructions, dust cover, bottle of immersion oil, spare 30W halogen bulb and fuse.
•Cupping Rubber Eye Guards for Blocking Stray Light.
Other Specifications
•Manufactured under ISO: 9001 Standards.
•210 VAC Power Requirement.
•High Quality Solid Construction!
•Precision Made Glass Optics!
•Brand New, Never Used!
Manufacturer’s Warranty
•Warranty is 1 years on all microscope equipment.
•The microscope warranty covers problems arising from normal usage.
•We will repair or replace your defective microscopy equipment as needed during the warranty period.
Options
•Optional Plan Phase Contrast Kit.
•Optional Darkfield Illumination Kit.
