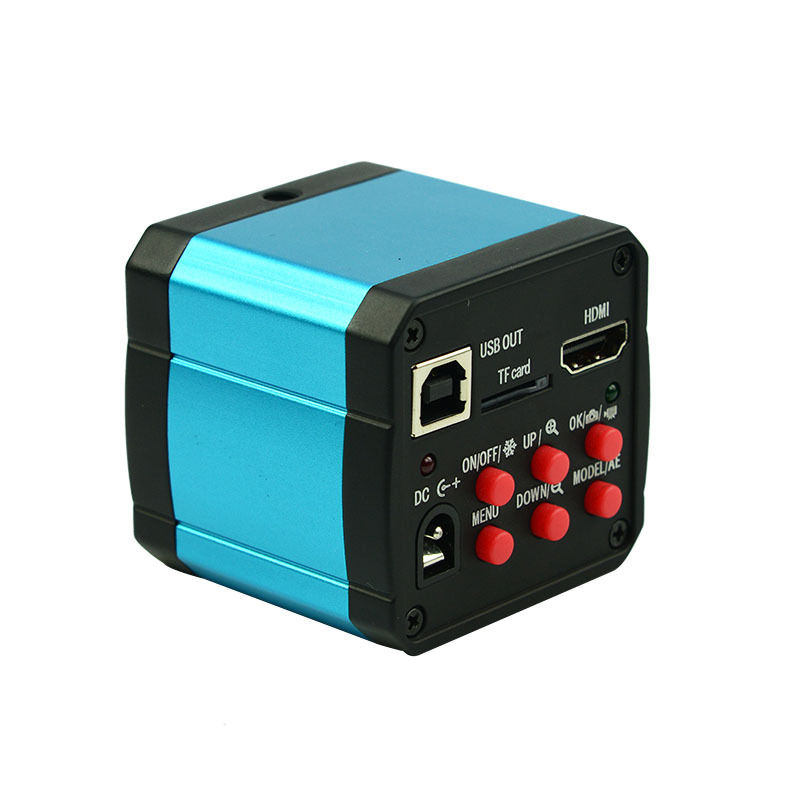

Product Description
Features:
- Model: Camera with HMDI USB 2.0 two output
- Image Format: jpg
- Image resolution: 4320*3240 (for TF card) 1920*1080 @ 30FPS(for TF card)
- Video format: MOV(for TF card)
- Video recorder: 1920*1080 @ 30FPS (for TF Card)
- USB Video resolution : 1920*1080 @ 30FPS
- White Balance : Auto
- Light Auto
- Color: Color
- Mirror: Left/right, Up/Down Freeze: Support
- OSD: English/Chinese/French/Spanish/Portuguese
- Line: different color,4 horizontal line , 4 vertical lines,any positions
Specification:
- Image sensor:14-megapixel Panasonic sensor 1/2.3-inch Effective
- Pixel size:1.43×1.43um
- Frame rate:30fps
- Definition: FULL HD
- Housing: metal
- Lens: CS for test, custom provide
- Video format: MP4, AVI
- Encode: H.264 (High Profile)
- Digital magnification:5 times digital zoom
- Brightness control: Auto/manual
- Color: R/G/B adjustable
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line:
- Support multi-color, 4 pcs of transverse lines/vertical lines, moveable Different color,4 horizontal lines, 4
- vertical line, any positions SNR: Support
- TF card interface: Max 32G
- HDMI interface: Standard HDMI output (Type A)
- Lens: C
- USB interface: Standard usb2.0 interface (Type B)
It build in digital crosshairs and color control, add line in the pictures, freeze
Supply USB2.0, HDMI HD video, two output ports
NOTE
- TF card storage is only for HDMI output. USB output will be store in PC.
- For USB output, the white balance, exposure and color adjustment are automatic. They can’t be adjusted.
For HDMI output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also cannot be adjusted.

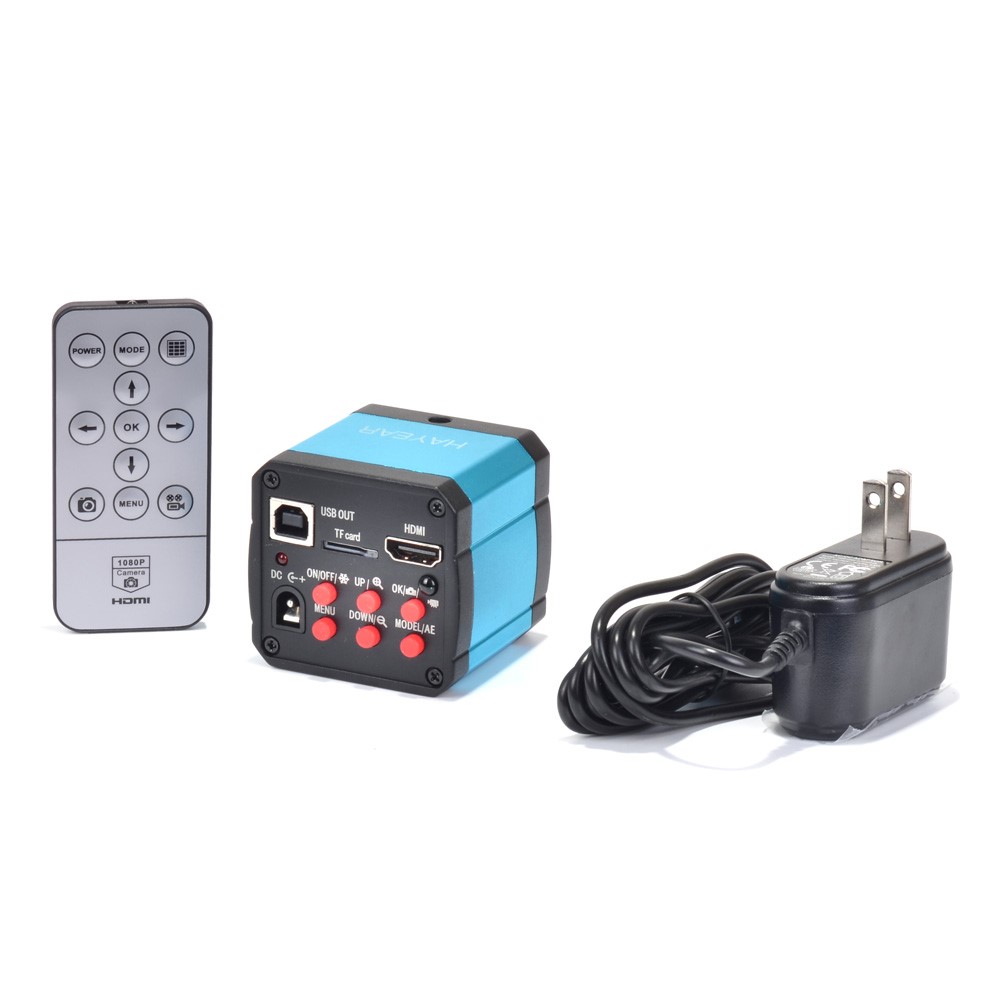

Package Includes:
- 1 x HDMI Microscope Camera
- 1 x 12V Power supply
- 1 x USB line
- 1 x Software DISC
1 Year Manufacturer’s Warranty
- The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
- If your system needs repair, simply let us know and we will see that it is back in service ASAP.
- We ensure availability of supply parts and accessories for the next (10) Ten Years and life time technical support.
- We will repair or replace your defective microscope parts as needed during the warranty period.
Additional Information
- Protective Molded Styrofoam Container.
- Precision Ground Glass Lens.
- Quality Construction, Metal Frame.
- 220V
- 100% Brand New!
