Product Description
Eyepiece Details – Magnification
• Eight Choices of Microscopic Magnification: 40x, 64x, 100x, 160x, 400x, 640x, 1000x, and 1600x.
• Microscope kit includes two eyepiece sets to vary magnification: Wide Field 10x and 16x.

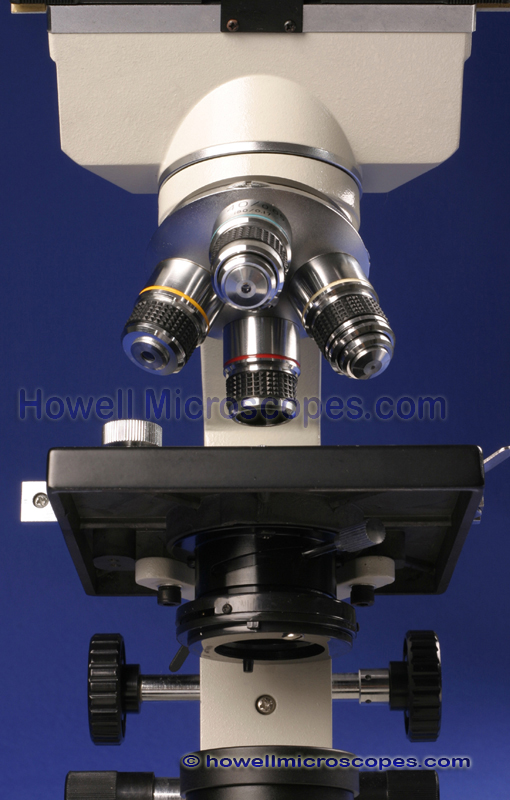

• DIN standard microscope objectives: 4x, 10x, 40x, 100x (oil immersion lens).
• The 40x and 100x microscope objectives have a spring to protect the glass specimen slide as well as the lens.
Illumination
• Variable Intensity 20W Tungsten Halogen Transmitted Base Illumination.

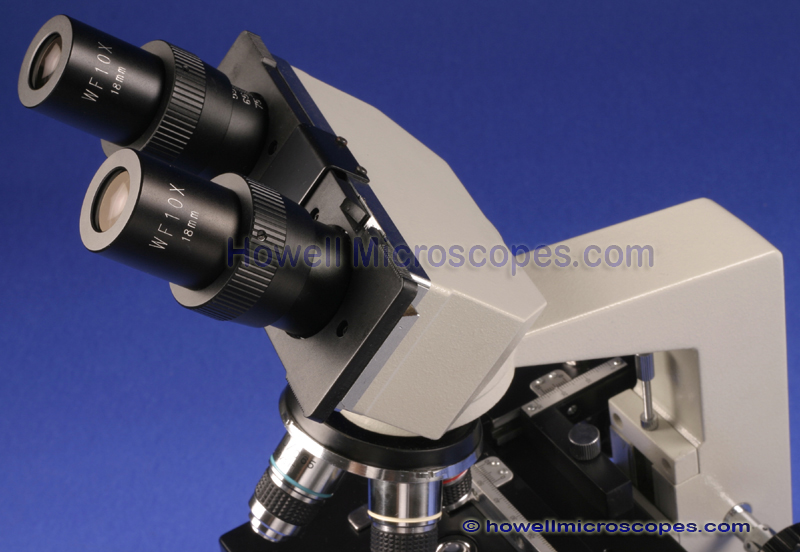

Microscope Head Features
• Binocular Microscope head on ergonomic 45 degree viewing angle with capablity to rotate head 360 degrees.
• The interpupilliary distance, distance between the microscope eye tubes, adjusts from 55 to 75mm to fit each user.
• Both ocular eyetubes have a diopter adjustment allowing for correction of vision through the microscope optics.
Substage Light Condenser and Filters
• Abbe substage light condenser with 1.25 numerical aperature, condenser focusing knob, filter holder and iris light diaphragm. These microscope parts allow for optimal focusing and control of light on the specimen.
• Light filters include blue, green, and yellow.

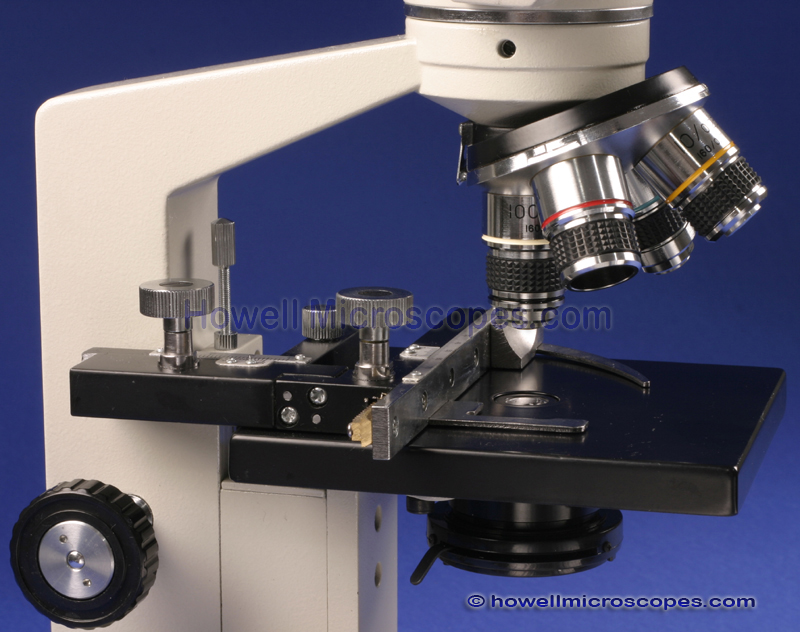

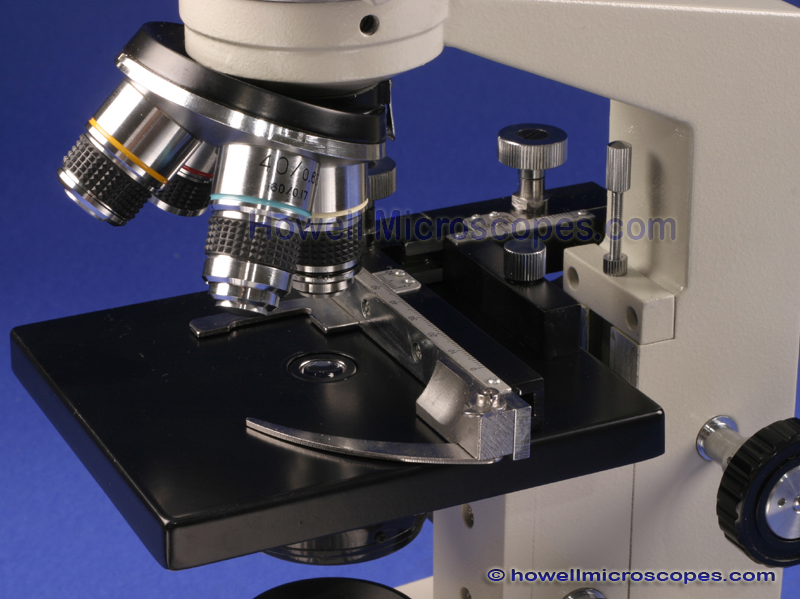

Stage Specifications
• Graduated Mechanical Stage Size: 120 x 110mm.
• X-Y Slide Holder Movement Knobs – Range of Movement: 72mm (X-Direction) x 31mm (Y-Direction).
Specimen Focusing Details
• Coarse focusing knobs move microscope stage up and down with a travel range of 20mm.
• Fine focusing adjustment knob with division of 0.002mm movement.
• Coarse focusing tension can be adjusted.
• Stage travel has adjustable screw to limit movement. This can be set to protect microscope objective and slide from coming too close.
Frame – Base – Size – Weight
• Total Overall Height of Microscope: 355mm.
• Instrument Weight: 10 lbs.
Items Included
• Items included with microscope kit: instructions, bottle of immersion oil for use with 100x oil immersion objective, dust cover, extra halogen bulb and fuse.
Other Specifications
• Manufactured under ISO: 9001 Standards.
• 220 VAC Power Requirement.
• High Quality Solid Construction!
• Precision Made Glass Optics!
• Brand New, Never Used!
Manufacturer’s Warranty
• Warranty is 1 years on all microscope equipment.
• The microscope warranty covers problems arising from normal usage.
• We will repair or replace your defective microscopy equipment as needed during the warranty period.
