Sale!
Quality Optics

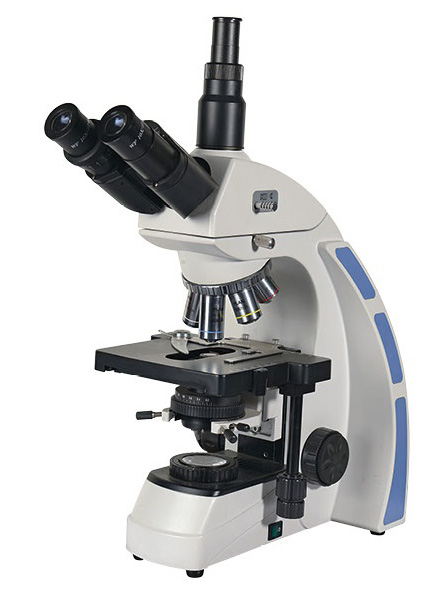

POWERED LED 40X – 1600X MAGNIFICATION TRINOCULAR COMPOUND MICROSCOPE INFINITY CORRECTED OPTICS WITH 14MP HIGH RESOLUTION HDMI CAMERA

₱ 95,000.00 ₱ 85,000.00

Microscope Product Overview

  • Superior Quality Infinity Corrected Professional Compound Trinocular Microscope!
  • Infinity-Corrected Objectives for Better Quality!
  • NOT Student Grade! This is a More Expensive Professional Grade!
  • If Price is Everything to You, Please Close this Ad, This Scope is Not for You.
  • If it is Important that You get a High-Quality Image, without Spending $3000 – $4000 from a Name Brand, then Continue!
  • This has the Higher Grade, More Expensive Semi-Plan Objectives for Optimal Quality!
  • Great for Doctors, Veterinarians, Medical Technicians, Scientists, Research Labs.
  • Compare to Similar Units costing $3000+ with name brands!
  • Excellent Bright and Clear Images through High-Quality Optics.

Out of stock

SKU: XSZ-166-T Category:

Product Description



Trinocular Photography Port

  • Through the standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
  • Have Your Own Complete Digital Video Microscopy System!
  • High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
  • Versatility – Included Trinocular Port Greatly Expands the Usefulness adding Photographic/Video Capability!
  • Other (not included) accessories may be required for connecting digital/film cameras, CCD cameras and Video cameras. Call or Email us your specific requirements.
Eyepiece Details – Magnification
  • Eight Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x and 1600x.
  • Two Eyepiece Sets Included: 30mm Diameter Wide Field 10x and Wide Field 16x.
  • Four Plan DIN Infinity Corrected Objectives: 4x, 10x, 40x, 100x (Oil Immersion).
  • These Semi-Plan Objectives are Better Quality and More Expensive than the Cheaper Achromatic on most Scopes.
  • Spring Loaded 40x and 100x Objectives to Protect Slides.
  • Reverse Facing Quadruple Nosepiece! A Better Design that allows Easier Access to the Slides since Objectives are Pointed Out of the Way!
Microscope Illumination
  • High Wattage Variable Intensity LED Transmitted Base Illumination.
  • If you find a cheaper scope, ask if it is made to accomodate the higher wattage 3W bulbs that provide a Brighter Image. It is Important for Regular Brightfield work and Essential for Phase Contrast and Darkfield.
  • Koehler Illumination System with Focusable Field Diaphragm on Base to allow for Better Control and more Efficient Use of Light Source. This gives Improved Image Quality!
  • Koehler is Important for Regular Brightfield Work and Essential for Phase Contrast and Darkfield.
  • Few Scopes have the More Expensive Koehler Illumination System. If you see a Cheaper Scope, ask if it has Koehler.

Microscope Head Details

  • 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.) Rotatable 360 Degrees.
  • Adjusts to the Distance Between your Eyes: 48 to 75mm Inter Pupillary Distance.
  • Diopter Adjustment to Correct for Your Specific Vision Needs

Condenser – Iris – Filters

  • 1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.
  • Condenser Alignment Screws.
  • Rack and Pinion Steel Gears for Easy and Better Condenser Movement.
  • Three Filters Included: Blue, Green, Yellow.

Stage Specifications

  • Large Graduated Mechanical Movable (up/down and longitudinal Y-direction) Stage: 180 x 160mm.
  • The Stage Movement in the Longitudinal Y-Direction is a Great Option Found Only on More Expensive Models!
  • Low Position Coaxial X-Y Slide/Stage Movement Knobs – Range of Movement: 75mm (X-Direction – Slide Movement) x 50mm (Y-Direction – Stage Movement).

Focusing

  • Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
  • Coarse Adjustment Travel Range: 20mm. (Stage Movement Distance Up/Down).
  • Fine Adjustment Division: 0.002mm.
  • Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.
  •  Tension Adjustable Coarse Focusing.

Other Details
  • Microscope manufacturing factory certified ISO: 9001 compliant.
  • All optical lens are precision ground glass for premium optics and durability.
  • Frame of microscope is sturdy and made of metal.
  • Voltage 220V.
  • All microscopy items are always 100% Brand New! We do not sell used microscopes or used parts.
Manufacturer\’s Warranty
  • 1 YEAR Manufacturer’s Warranty on Microscope and accessories.
  • The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
  • If your system needs repair, simply let us know and we will see that it is back in service ASAP.
