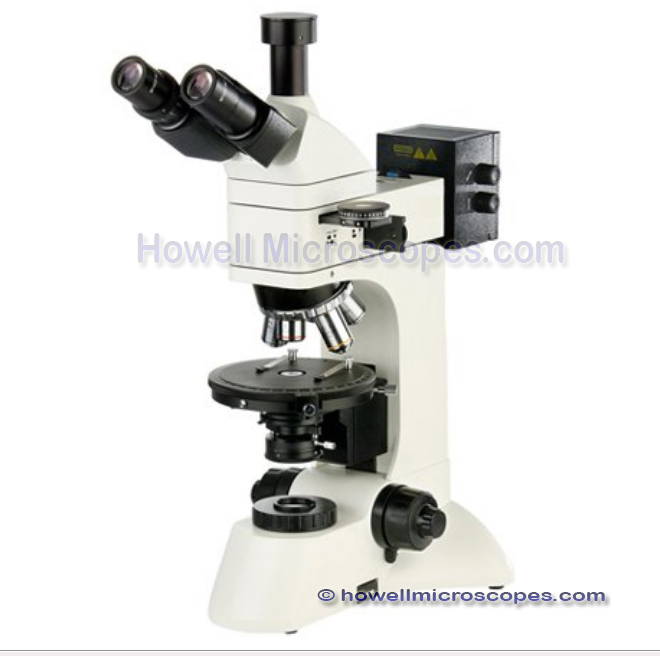

Product Description
Eyepieces and Magnification
• Wide field WF10X(¦µ22mm)
• Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div
• Four Magnifications: 50x, 100x, 400x, and 600x.
• Trinocular is inclined 30 and enable to shoot in 100% light flux.
• 10x Eyepiece Set. PL 10x/22mm. High Eye-point for Ease of Viewing when wearing Eyeglasses.
• Reverse Facing Quadruple Nosepiece! A Better Design that allows Easier Access to the Slides since Objectives are Pointed Out of the Way!
• Objective Centering Screws on Nosepiece for Precise Alignment..
Head – Interpupillary Distance – Diopter
• Inclined Trinocular Head (Easier to View than 45 Deg.
• Adjusts to the Distance Between your Eyes: 50 to 80mm InterPupillary Distance.
• Diopter Adjustment to Correct for Your Specific Vision Needs.
Objective
• Strain-free plan achromatic objective (no cover glass)
• PL L5X/0.12 (Work distance)26.1 mm
• PL L10X/0.25 (Work distance)20.2 mm
• PL L40X/0.60£¨spring£©(Work distance)3.98 mm
• PL L60X/0.70£¨spring£©(Work distance)3.18 mm
Illuminating System
• 3W LED, brightness enable control.
• Polarizer can be rotated 360°.
• Analyzer can be rotatable 360° with scale and minimum vernier.
• Integrated field and aperture diaphragm.
Compensator
• Ë, ¦Ë/4 and quarts wedge compensator.
Focus system
• Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
• Coarse Adjustment Travel Range: 28mm. (Stage Movement Distance Up/Down).
• Fine Adjustment Division: 0.002mm.
• Adjustable Lock Ring Stop to Limit Coarse Range to Protect Slides.
• Tension Adjustable Coarse Focusing.
Condenser – Iris – Filters
• Substage Condenser, N.A. 1.2 – 0.22, on Swing, with Two Condenser Alignment Knobs, and Iris Diaphragm.
• Rack and Pinion Steel Gears for Easy and Better Condenser Movement.
• Blue Filter for Base Illuminator.
Free Beginner Microscope Accessory Kit
• Includes a set of rock and mineral slides. Ten thin sections on glass slides: fine granite, gabbro, muscovite schist, greisen, wollastonite, gritstone, evaporite, amphibolitic schist, epidote, kyanite schist.
• Artist pigment database training program on polarizing microscopy, pigment identification.
Included Items
• Quartz Wedge 1-4 Order Retarding Compensator Plate: 12x28mm, I-IV.
• Mica (One Quarter Wavelength) Retarding Compensator Plate: 18mm Dia., 147.3 nanometers.
• Gypsum (One Full Wavelength) Retarding Compensator Plate: 18mm Dia., 1st Order Red 550 nanometers.
• Includes Rubber Eye Guards for Blocking Stray Light.
• Measuring Kit Included: $250 Value!
• Includes: Stage Micrometer with 0.01mm Resolution for Precise Calibration of Reticle.
• Includes: Measuring Reticle Built into Eyepiece: X-Scale, 10mm in 100 divisions, 0.1mm Resolution.
• Comes with Dust Cover and Instruction Manu
Additional Information
• Protective Molded Styrofoam Container.
• Precision Ground Glass Lens.
• Quality Construction, Metal Frame.
• 220V
• 100% Brand New!
1 Year Manufacturer’s Warranty
• The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
• If your system needs repair, simply let us know and we will see that it is back in service ASAP.
• We ensure availability of supply parts and accessories for the next (10) Ten Years and life time technical support.
• We will repair or replace your defective microscope parts as needed during the warranty period.
