Product Description
Special Features
• Well-coated optical system can provide sharp & clear images with extremely flatness and contrast.
• Ergonomic design can make users feel comfortable after long-time operation.
• Standard zoom magnification 8X-50 with zoom ratio 1:6.3.Standard working distance is 115mm. With
additional objectives, it can be increased to 211mm.
• Configured with WF10X/22mm eyepiece. Each eyepiece allows diopter adjustment to suit different users.
• Full set of eyepiece, auxiliary objectives and other accessories can fulfill different needs.
Eyepieces and Magnification
• Excellent High Ratio Zoom Range (Without Changing Eyepieces): 6.5x – 60x Continuous Magnification, With Included 22mm Wide Field 10x Eyepieces.
• Changing to 20x eyepieces gives up to 120x Magnification!
Illumination

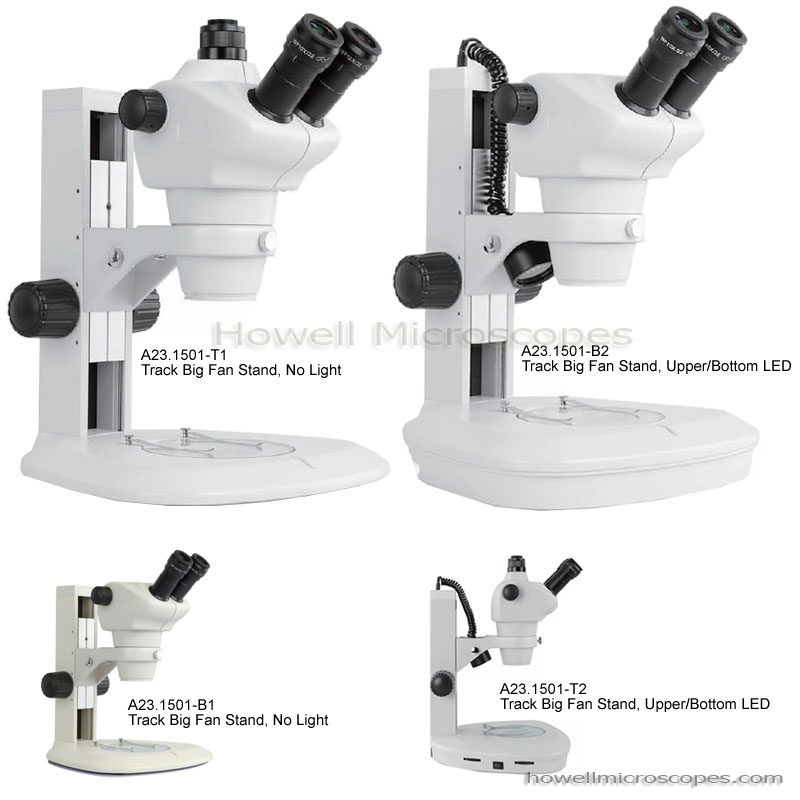

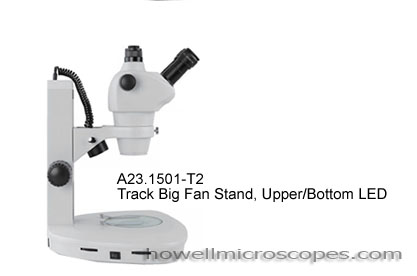

• Independent Variable Intensity Dual LED Upper and Base Illumination:Track Big Fan Stand, Upper/Bottom LED
Head – Interpupillary Distance – Diopter
• Trinocular head, 45° inclined, 360° rotatable.
• Interpupillary range from 52mm-75mm.
• Distribution is 3:7 for trinocular
Working Distance
• Standard Working Distance is 115mm. With additional objectives can be up to 45mm-211mm.
Frame – Base – Size – Weight

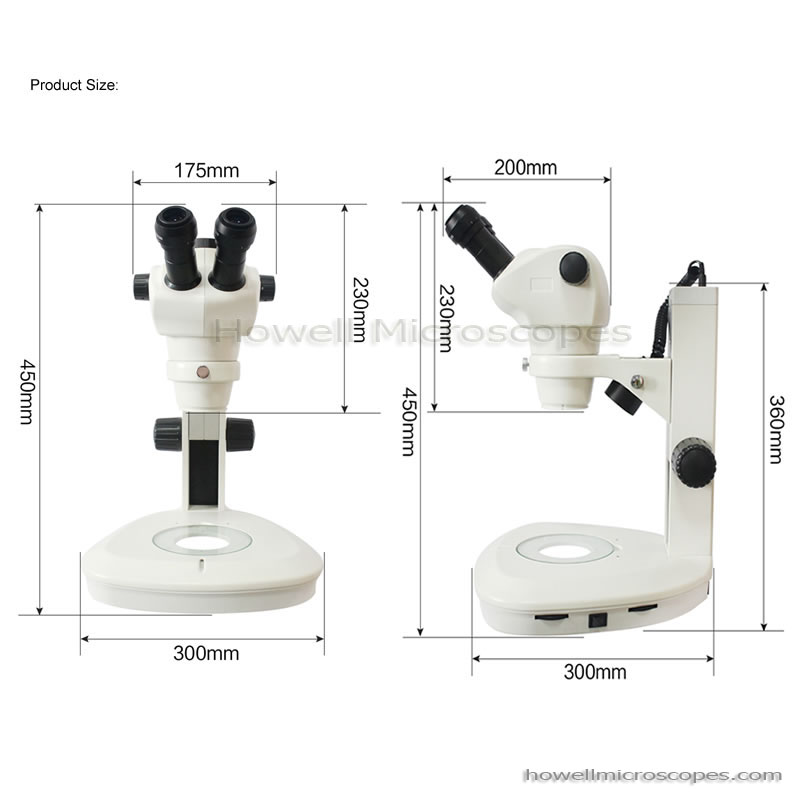

• Total Overall Height of Microscope: 450mm.
• Instrument Weight: 16 lbs.
Other Specifications
• Manufactured under ISO: 9001 Standards.
• 220 VAC Power Requirement
• High Quality Solid Construction!
• Precision Made Glass Optics!
• Brand New, Never Used!
Manufacturer’s Warranty
• Warranty is 1 year on all microscope equipment.
• The microscope warranty covers problems arising from normal usage.
• We will repair or replace your defective microscopy equipment as needed during the warranty period.

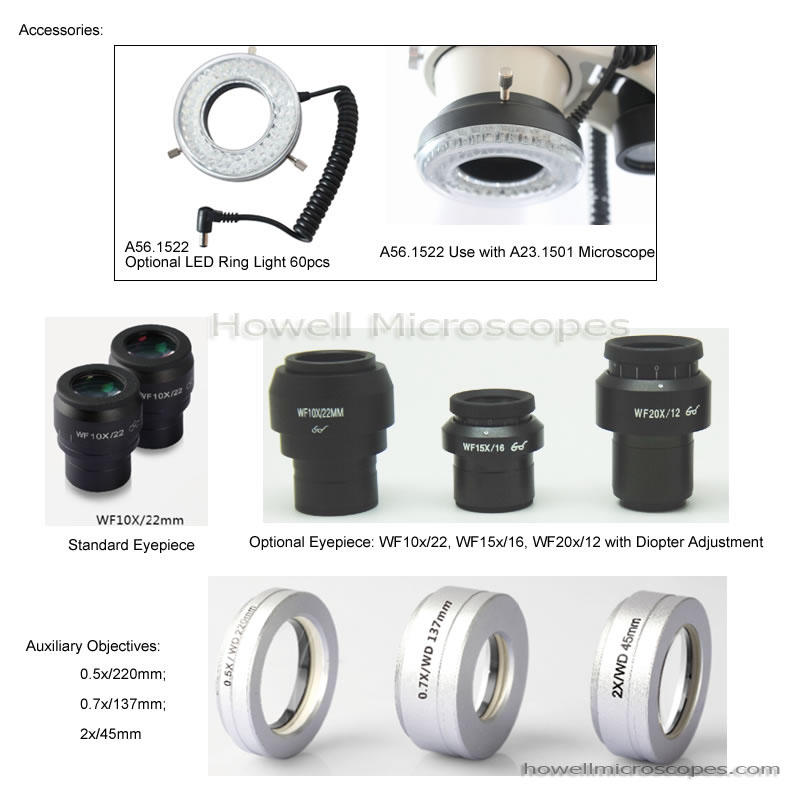

Optional objective
• Auxiliary Objective (0.5x/210mm; 0.7x/130mm; 2x/45mm)
Optional Ring Light
• LED Ring Light.
