Laptop NOT Included. USB Camera - PC Connectivity. This system is capable of this type of connection.
0032000m-c_10032000m-c_20032000m-c_30032000m-c_40032000m-m_10032000m-m_2

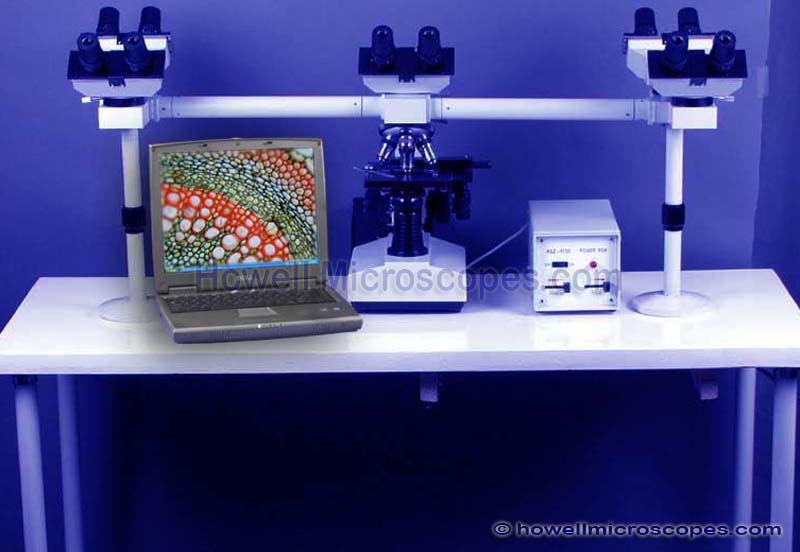

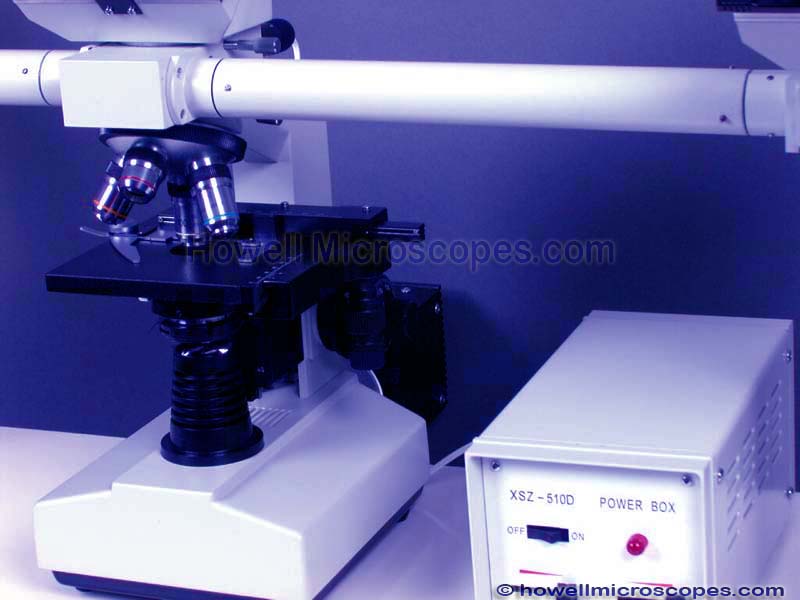

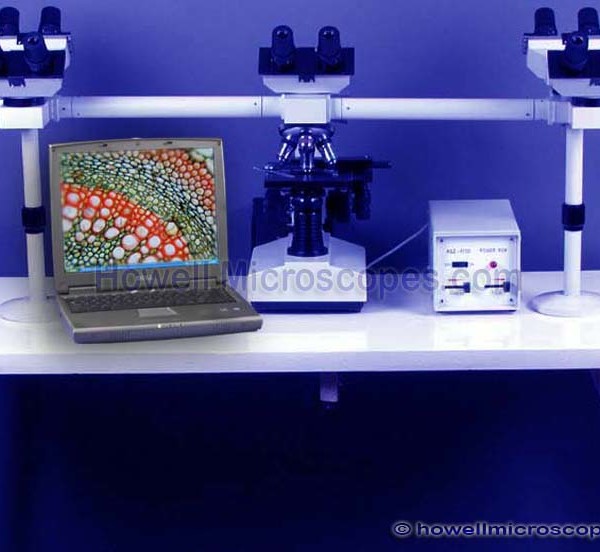

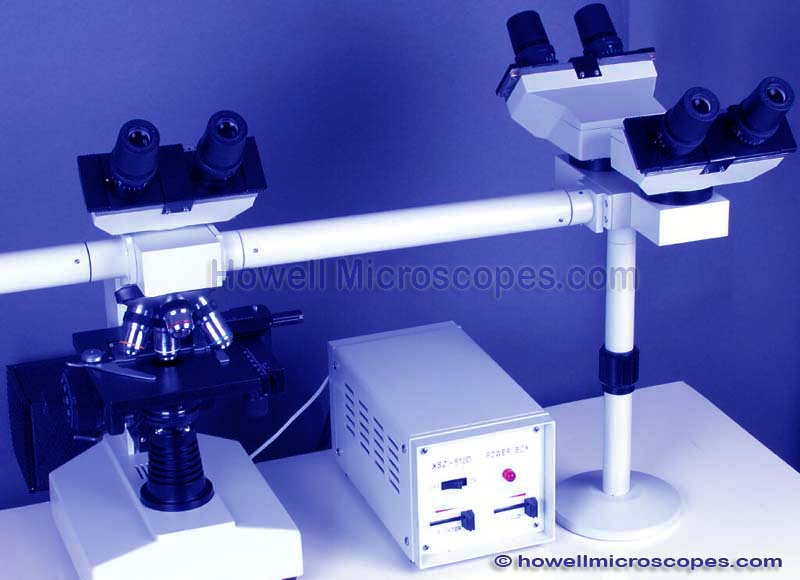

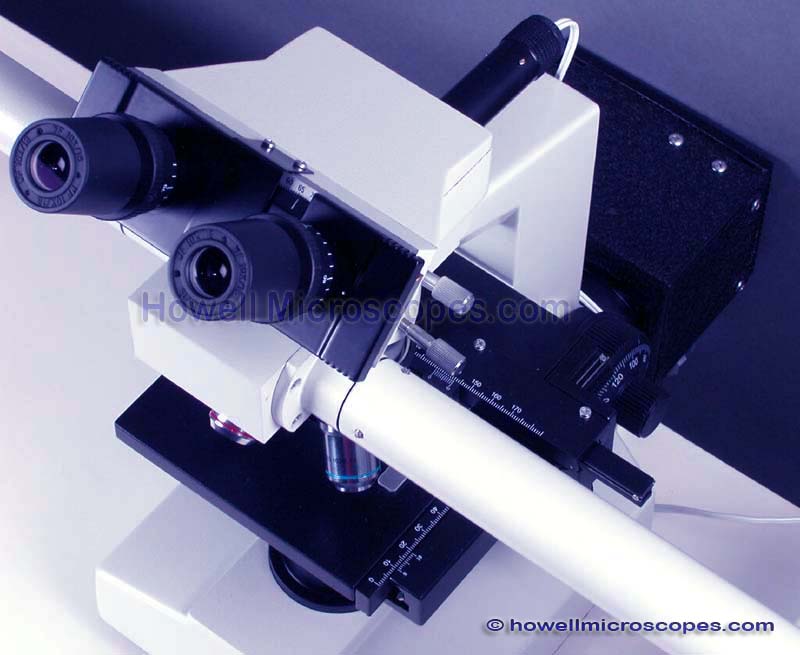

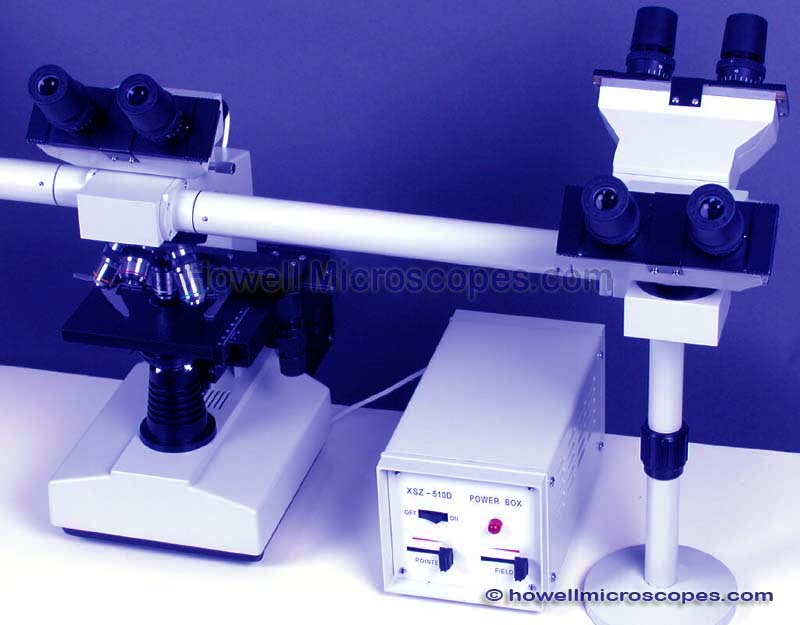

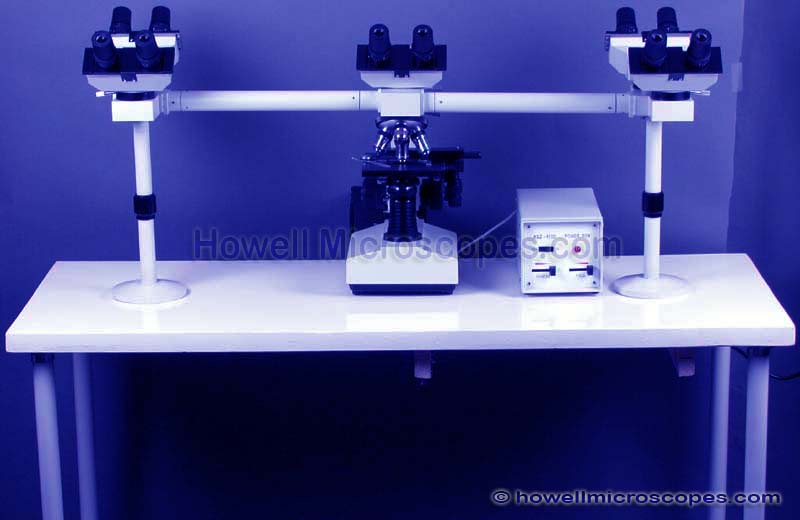

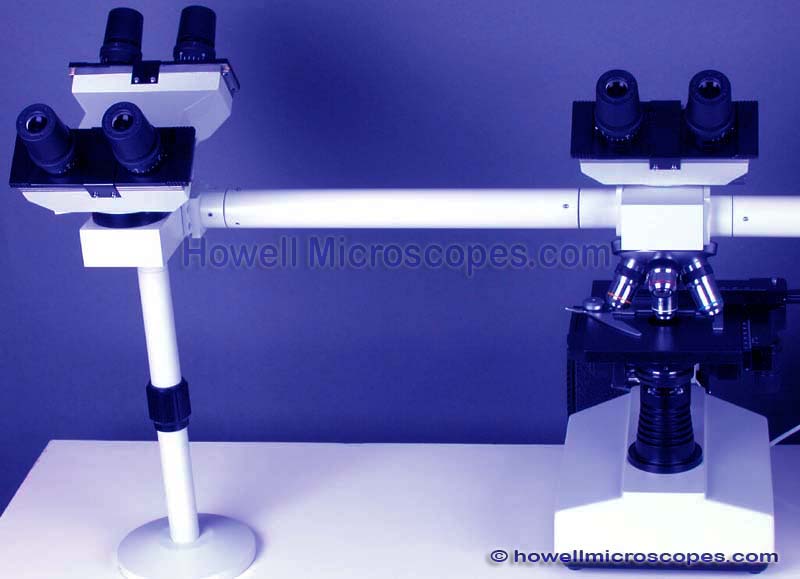

Sale! Five Head Teaching Microscope Multiple Simultaneous Viewing 40X – 1000X High Power Compound Trinocular w/ 14MP HDMI Camera

₱ 235,000.00

Special Features:

  • Five Head Professional High Power Teaching – Training Microscope!
  • Perfect for any application needing Simultaneous Viewing by up to Five People!
  • Includes Full Size Work Table, 47x18x 28 Inches High.
  • LED Pointer arrow with variable intensity light, superimposed on viewing field of all stations.
  • Pointer arrow points to the same location on all five microscope heads.
  • Pointer arrow can be moved out of the viewing field as desired.

3 in stock (also available on backorder)

SKU: hm0032000m Category:

Product Description

USB Camera Specifications

  • High Resolution 14 MegaPixel Digital Camera System.
  • Complete Digital Microscopy Solution Included.
  • Through the standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
  • High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
  • Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
  • Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
  • Includes measuring capability with the software.

Eyepiece Details – Magnification

  • Four Magnifications: 40x, 100x, 400x, and 1000x.
  • Eyepiece Set Included: Wide Field 10x.
  • Four DIN Achromatic Objectives: 4x, 10x, 40x, 100x (Oil Immersion).
  • Spring Loaded 40x and 100x Objectives to Protect Slides.

Illumination

  • High Power 100W Halogen Variable Intensity Transmitted Light in External Housing.
  • External Power Supply for Base Lighting and Light for Pointer Arrow.

Head – Interpupillary Distance – Diopter

  • Trinocular Head (Photo/Video Port) on Teacher’s Station Plus Four Binocular Student Heads
  • 45 Degree Inclined Trinocular Heads, Rotatable.
  • Adjusts to the Distance Between your Eyes: 55 to 75mm Inter Pupillary Distance.
  • Diopter Adjustment on Both Oculars of all Scopes. Use for Adjusting the Focus on Training Stations.

Condenser – Iris – Filters

  • 1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.
  • Filters Included: Blue and Green.

Focusing

  • Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
  • Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
  • Tension Adjustable Coarse Focusing.

Included Items

  • Includes: Two Extra 24V100W Bulbs, Two Fuses, Bottle of Immersion Oil, and Dust Cover.

Other Specifications

  • Ships in Molded Styrofoam Container for protection.
  • Manufactured under ISO: 9001 Standards.
  • 220V
  • High Quality Solid Construction!
  • Precision Made Glass Optics!
  • Brand New, Never Used!

Manufacturer’s Warranty

  • Warranty is 1 year on all microscope equipment.
  • The microscope warranty covers problems arising from normal usage.
  • We will repair or replace your defective microscopy equipment as needed during the warranty period.
