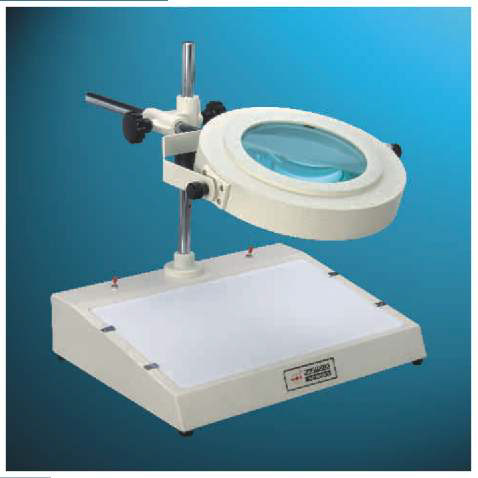

Dual Light Bench Magnifier (MAGNASCOPE) RBM-105

₱ 21,500.00 ₱ 17,500.00

Technical Details :
These are specially designed for assembly & inspection where light from bottom is also required. Samples are put on the illuminated base for viewing the internal details.
Lens :  Dia 150 mm made from fine optical glass
Effective Lens Dia. : 135mm
Magnification 3.5x.
Body Material : Aluminum.
Body Color : Siemens Grey.
Illumination Type : Top & Bottom
Illumination : 22W Circular Fluorescent Tube Dia.216mm
Color Temp. of Light : 6500°K
Outer Ring Diameter : 220mm
Working Distance : 220mm
Field of View : 160mm
Maximum Height : 390mm
Vertical Movement : 210mm.
Horizontal Movement : 250mm
Rotation : 360°
Lens Tilt : 90°
Stand Type : Table Top
Base Size (LxBxH) : 365x285x80mm.
Weight 9.0kgs.
Packing Dim. (cms.) : 55x34x33

Optional for above
2x Auxiliary Lens for above Magnifiers @ PHP 1,500.00 each
