Motorized Bullet Holder |
|
|

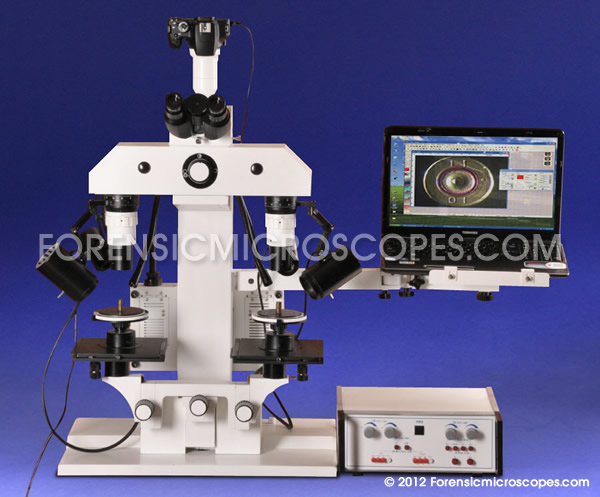

- Computerized imaging system with bullet comparison crime lab software.

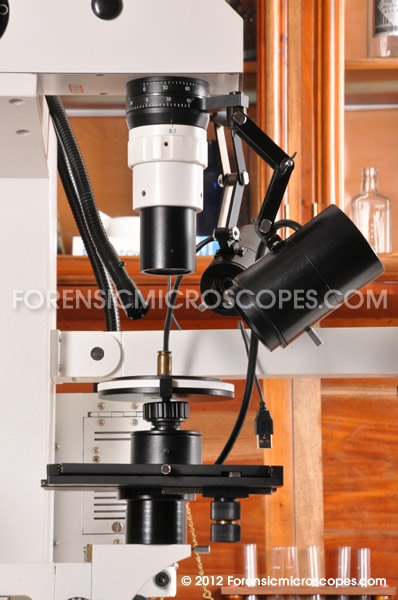

- Motorized bullet holder (3-speed) rotates bullet 360 degrees as HDMI camera scans bulletOs surface and outputs image via USB to computer using analog to digital converter box. Bullet is rotated the distance of one image pixel at a time with the camera capturing the image.
- Software allows final scanned image of entire bullet surface (from each tiny increment of rotation) to be pieced together and laid out for a flat image view for simple matching up and comparing with other bullets.
|
|
|
|
Centralized Control: |
|
|

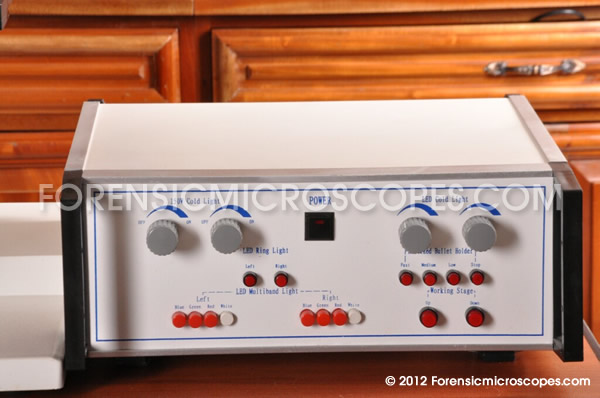

- Control box panel with centralized control of microscope components. Controls fiber optic light on/off and illumination intensity, controls LED multiband cold light on/off and selection of four colors, controls on/off of LED ring lights, controls 3-speed motorized bullet holder, controls up/down movement of motorized stage focusing.
|
|
|
|
Illumination Systems |
|
|
- High intensity 150W fiber optic cold illumination system with rigid fiber optic cables. Includes focused collector lens on tips for quick adjustment of light spot.
- Infrared (I call it ultraviolet below and others call it uv but looks reddish, which is correct?) and polarizing filters for fiber optic cable tips.

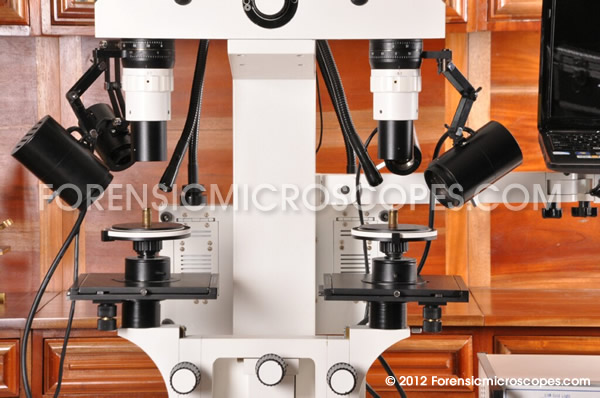

- LED ring lights, three different sets: ultraviolet, infrared, and white light.
- LED Multiband cold light source with blue, green, red, and white colors. Colors are pushbutton selected on control panel.
- 5W LED Cold light illuminator with manually inserted red and green color filters.
|
|
|
|
|
|
Special Features |
|
|
- Zoom magnification gives excellent range of imaging allowing specimens to be displayed at optimal image size. The zooming capability is a major improvement over other comparable models.
- Motorized Focusing of stage: Z-direction focusing of microscope (stage elevation). Has buttons on control panel that raise/lower the specimen bar.
- Polarizing (analyzing) lens set for bottom of objective lens. In a cross polarization optical system, two polarized lens are in the light path and can be rotated from parallel to complete cross polarization conditions. Surface features on shiny flat/polished surfaces are often shown with much greater contrast when viewed under cross polarized light conditions. Use in conjunction with the polarizing lens that fit on the ends of the fiber optic cables.

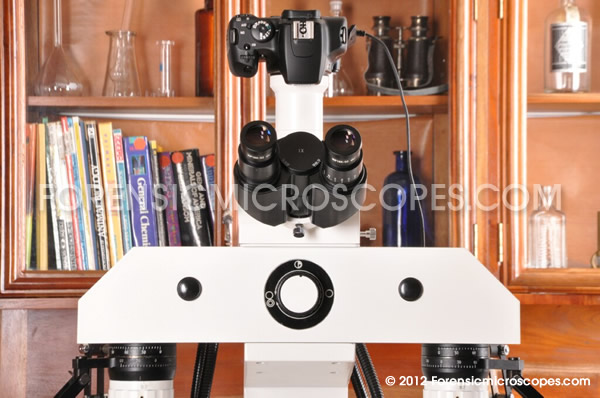

- Two trinocular photography/video ports. Includes standard SLR camera adapter and two c-mount adapters (1x and 0.5x, both with reduction lens) for CCD cameras. One port allows simultaneous video imaging on monitor while viewing through microscope eyepeces. Other port is dedicated for still image photography.
- Adjustable Arm for holding laptop. Laptop computer not included.
- Designed with maintenance in mind. The sensitive electronics are housed in a separate lightweight box that can easily be shipped in case of need for repair.
- Special made transport carrying case with protecting foam inside.
- This also has capability of forensic document examination by using the various lighting.
|
|
|
|
|
|
General Specifications |
|
|
- Zoom objective 0.7x-4.9x (zoom ratio 1:7). Magnification is 7x – 49x (with 10x eyepieces) and 14 ? 98x (with 20x eyepieces
- Larger 30mm diameter oculars and high eye point WF10x/22mm. Includes 20x eyepiece set.
- Includes auxiliary objective lens: 0.3x and 2x. These bottom lenses screw underneath the main objective lenses and alter the magnification of the resultant viewed image. It also affects working distance. The lowest power magnification is with the 0.3x lens on, giving 2x power and the highest is with the 2x lens on, giving up to 196x. The maximum allowable range is 2x to 196x.
- Manual X-Y stage movement.
- In addition to the motorized bullet holder, the unit ships with two large manually turned bullet holders. These holders can mount on two types of stage top pieces. One has a large height and tiltable angle and is for general bullet comparison where bullet is horizontal. The other has short height and is non-tiltable for comparison of firing pin markings on long rifle cartridges standing on end.
- Stage has opening for bottom illumination (white light, infrared, or polarizing light) with capability for comparing specimens other than bullets where transmitted light is optimal. Install frosted glass plates instead of stage top pieces to use the transmitted light feature.
- Coaxial light lens set with ability to introduce white light, infrared, or polarizing light. This allows coxial incident light from above to be parallel to the optical path and directly illuminate the specimen. These coaxial lights lenses can be screwed on or remain off.
- Includes instructions and extra bulbs.
|
|
|
|
|
|
Parts and Accessories List |
|
|

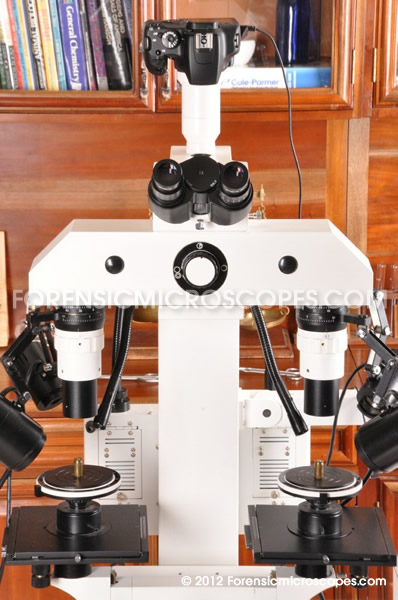

- Comparison bridge with split image control knob.
- Microscope head.
- Microscope main body and frame.
- External control box with pushbutton controls and reaostats for light intensity.
- Adjustable arm for laptop computer. Laptop not included.
- Crime Image microscope software package including CD rom and hardware lock.
- Carrying and storage case.
|
|
|
|
|
|
Illumination |
|
|
- External 150W cold light source with hard fiber optic cable.
- 5W LED Cold light illuminator.
- LED Multiband cold light source with 4 wave band color selections.
- LED ring light pairs: ultraviolet, infrared, and white light.
|
|
|
|
|
|
Auxiliary Lenses and Filters |
|
|
- WF10x and 20x eyepiece sets.
- Auxiliary objective lens: 0.3x and 2x.
- Coaxial light lenses.
- Red and green filters for 5W cold light source.
- Polarizing lenses for fiber optic cable tips.
- Lenses for fiber optic cable tips.
- Polarizing (analyzing) lenses for bottom of objective lenses.
|
|
|
|
|
|
Microscope Stage and Bullet Holders |
|
|
- Manually turned bullet holder pair.
- Motorized bullet holder.
- Stage top piece pair, taller and with tiltable angle.
- Stage top piece pair, shorter and non-tiltable angle.
- X-Y manual stage movement knobs.
- Manual focusing and raise/lower of specimen bar. In addition, the microscope has motorized focusing.
|
|
|
|
|
|
Photography and Video |
|
|
- High-Resolution and High Frame Rate HDMI Microscope Camera
- Through the standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
- High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
- 1280 × 720 (720P) resolution to match the current high-definition displayer on the market.
- Supporting various OSD cursors which can be toggled On/Off (functions shift as users press the button). The OSDs including: scale, double horizontal line, double vertical line, double cross line, Tri-cross line.
- The other function buttons including automatic white balance and exposure on/off (AEWB), saving images to SD card (SAVE), video stream and freeze on/off (FREEZE), remote image snapshot controller to reduce the vibration blur (REMOTE).
- For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
|
|
