Product Description
Technical details:

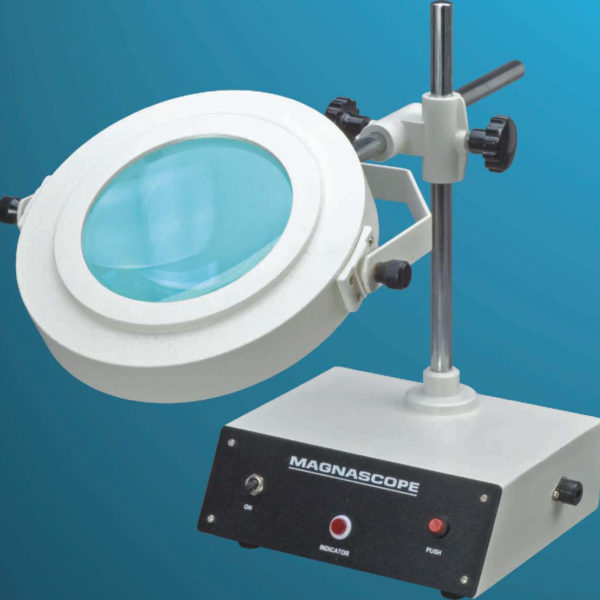

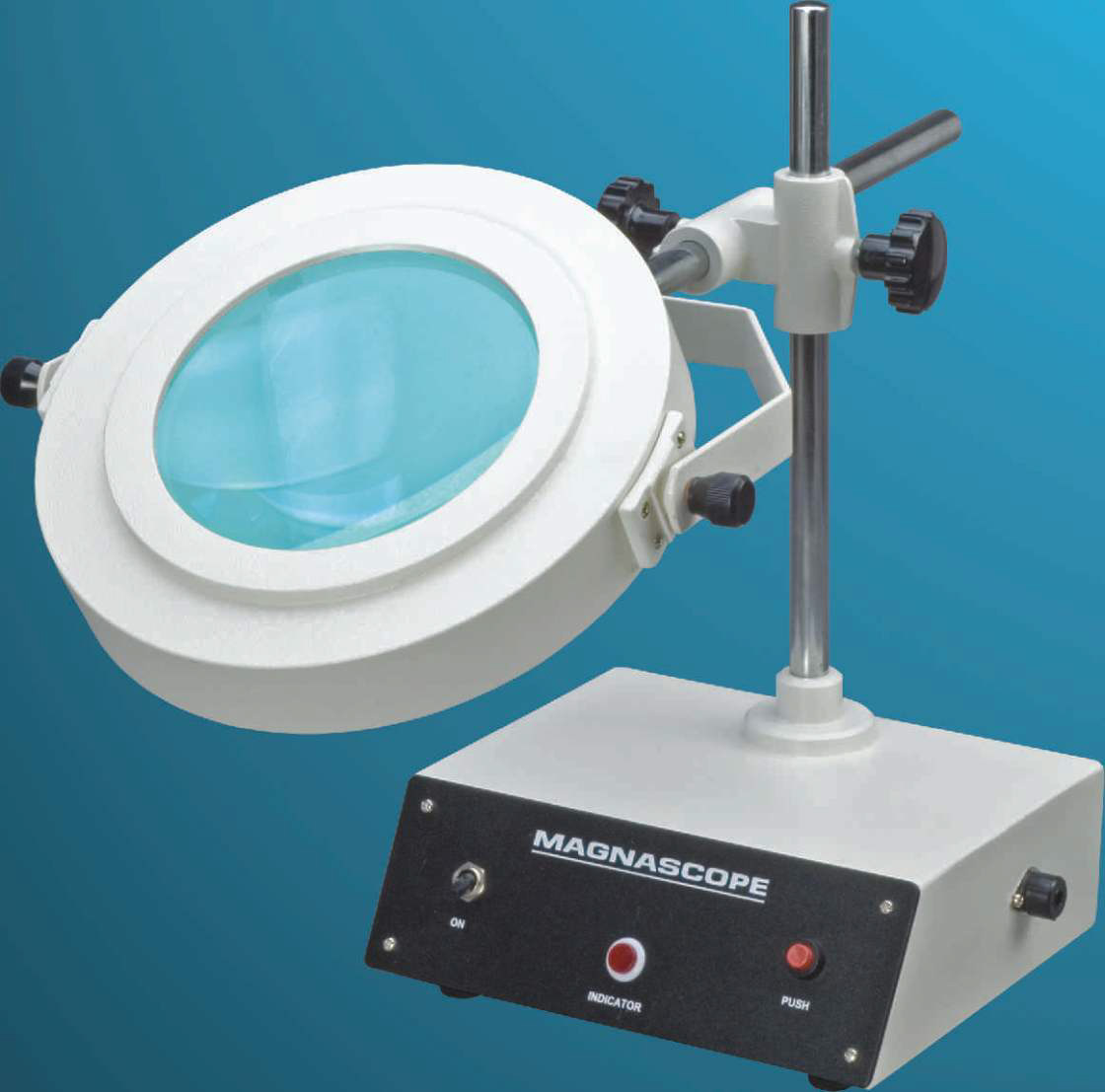

Ideal for various industrial inspection applications. These are designed for precision and comfort at the same time these are Ergonomic, Energy efficient and Economical.
Lens : Dia 150 mm made from fine optical glass
Effective Lens Dia. : 135mm.
Magnification : 3.5x
Body Material : Aluminum & C.I.
Body Color : Siemens Grey.
Illumination Type : Top
Illumination : 22W Circular Fluorescent Tube Dia.216mm
Color Temp. of Light : 6500°K
Outer Ring Diameter : 220mm
Working Distance : 220mm
Field of View : 160mm
Maximum Height : 380mm
Vertical Movement : 210mm
Horizontal Movement : 250mm
Rotation : 360°
Lens Tilt : 90°
Stand Type : Table Top
Base Size (LxBxH) : 225x190x80mm
Weight 8.4 kgs.
Packing Dim. (cms.) : 57x29x33
