| Eyepieces and Magnification |
- Four Magnifications: 40x, 100x, 400x, and 1000x.
- Two Eyepieces Included: Wide Field 10x.
- Pointers Included in Each Eyepiece.

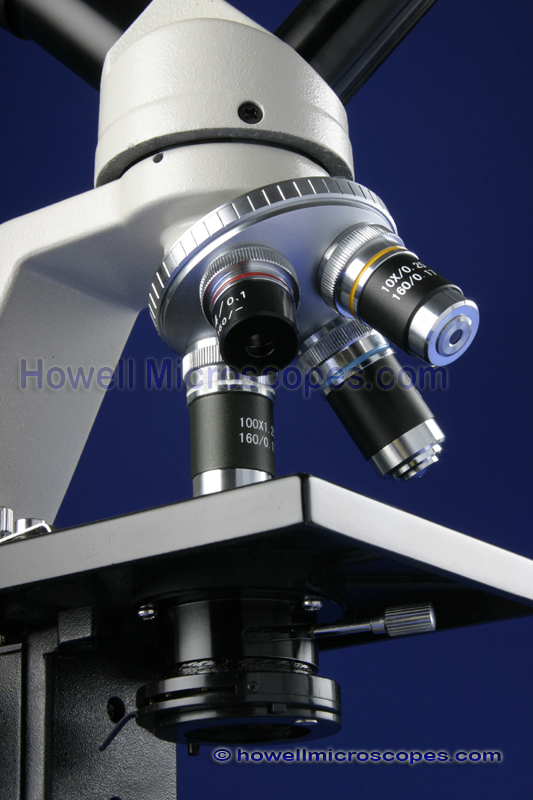

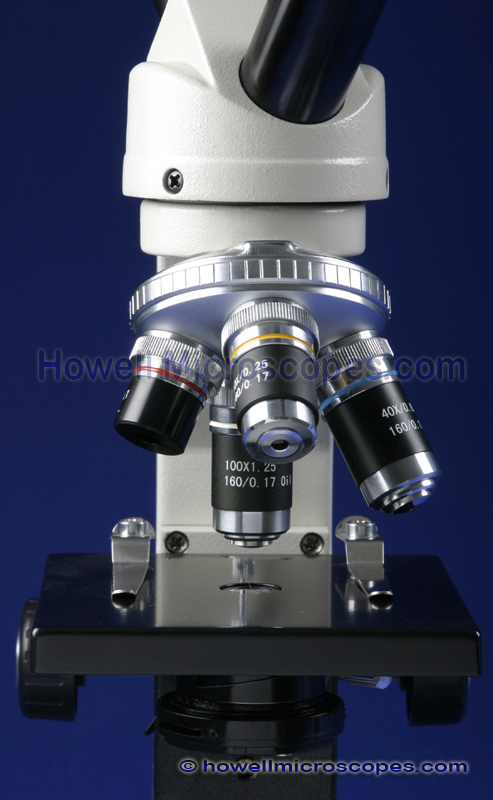

- Four DIN Achromatic Objectives: 4x, 10x, 40x, and 100x (Oil Immersion).
- Spring Loaded 40x and 100x Objectives to Protect Slides.
|
|
| Head – Interpupillary Distance – Diopter |

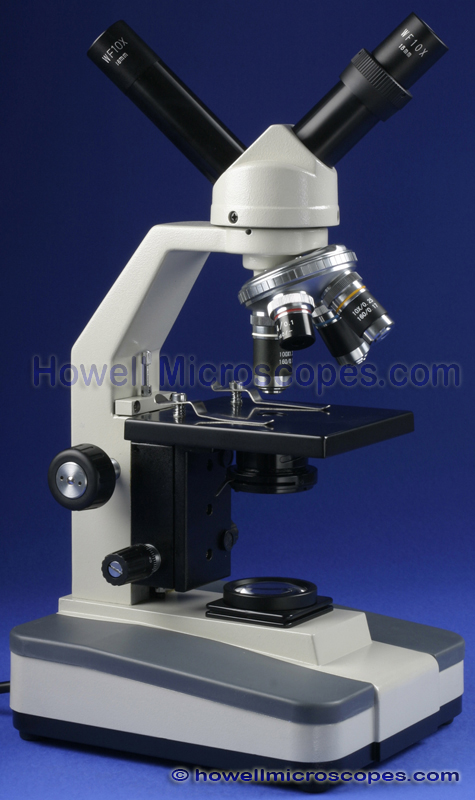

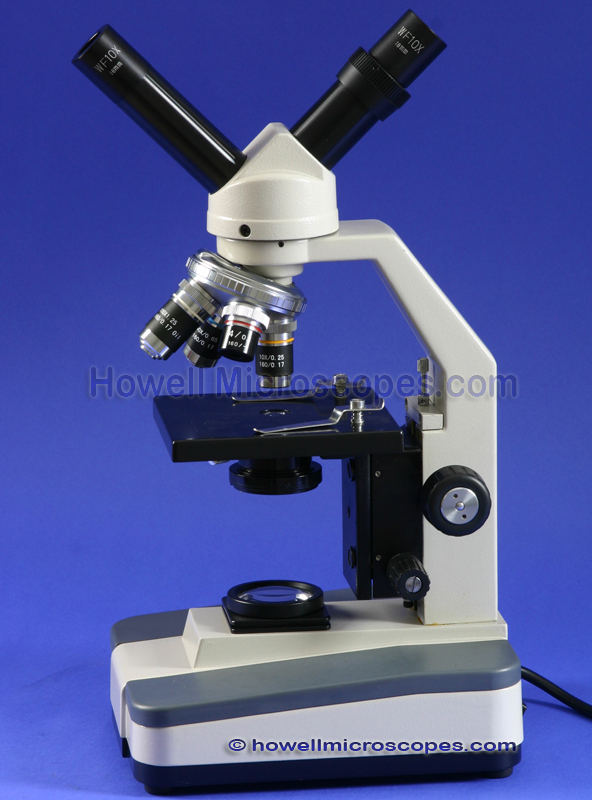

- 45 Degree Inclined Monocular Dual Viewing Head, Rotatable 360 Degrees.
- Two Monocular Eyetubes for Simultaneous Viewing by Two People.
- Diopter Adjustment on one Ocular to Synchronize the Optics so both are in Sharp Viewing Contrast.
|
|
| Condenser – Iris – Filters |
- 1.25 N.A. Abbe Substage Condenser, Condenser Movement Knob, Iris Diaphragm and Swing-Out Filter Holder.
- Full Light Condenser with Condensing Lens! This is not the cheap version with simple holes of varying diameter.
- Filters Included: Green, Blue, Yellow.
|
|
| Illumination |
- High Wattage 110V/20W Base Transmitted Illumination.
|
|
| Stage Specifications |

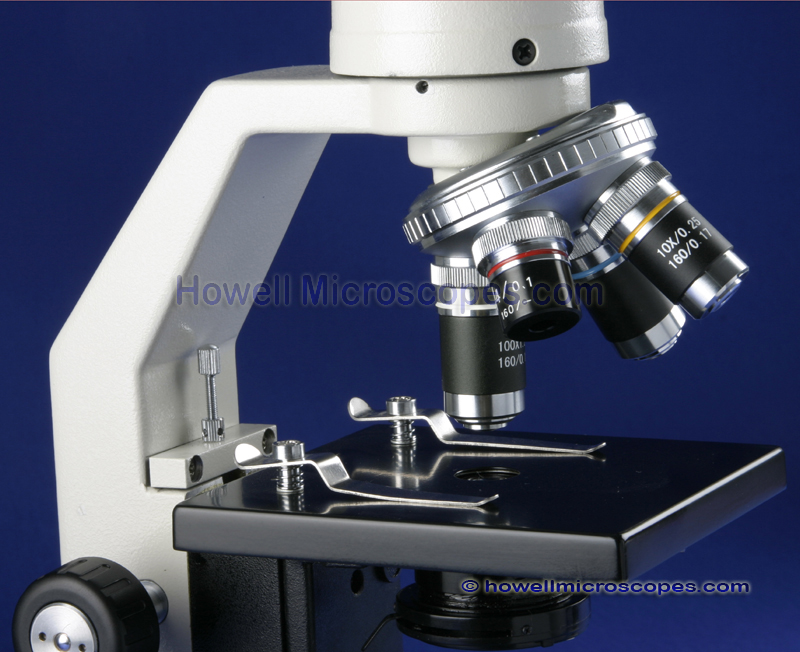

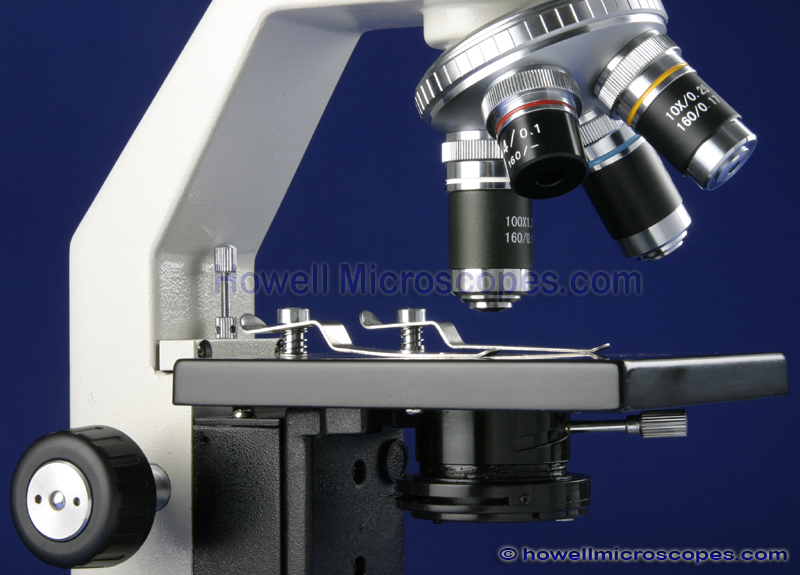

- Large Stage with Slide Clips.
|
|
| Focusing |
- Fine and Coarse Focusing Knobs on Both Sides of Microscope.
- Tension Adjustable Coarse Focusing.
- Adjustable Screw-Stop to Limit Coarse Range to Protect Slides.
|
|
| Frame – Base – Size – Weight |
- Total Overall Height of Microscope: 15 Inches (390mm).
- The Base is 8×7 Inches (210mm x 170mm).
- Instrument Weight: 18.5 lbs.
|
|
| Included Items |
- Includes: Instruction Manual, Bottle of Immersion Oil, Extra Bulb, and Dust Cover.
|
|
| Options |
- Optional 15x and 20x Eyepieces Available to Increase Magnification!
|
|
| Additional Information |
- Manufactured under ISO: 9001 Standards.
- Protective Molded Styrofoam Container.
- Precision Ground Glass Lens.
- Quality Construction, Metal Frame.
- 220 V.
- 100% Brand New!
|
|
| 1 Year Manufacturer’s Warranty |
- The warranty covers manufacturing defects. Abuse or damage due to dropping is not covered.
- If your system needs repair, simply let us know and we will see that it is back in service ASAP.
|
