Product Description
Video and Photography

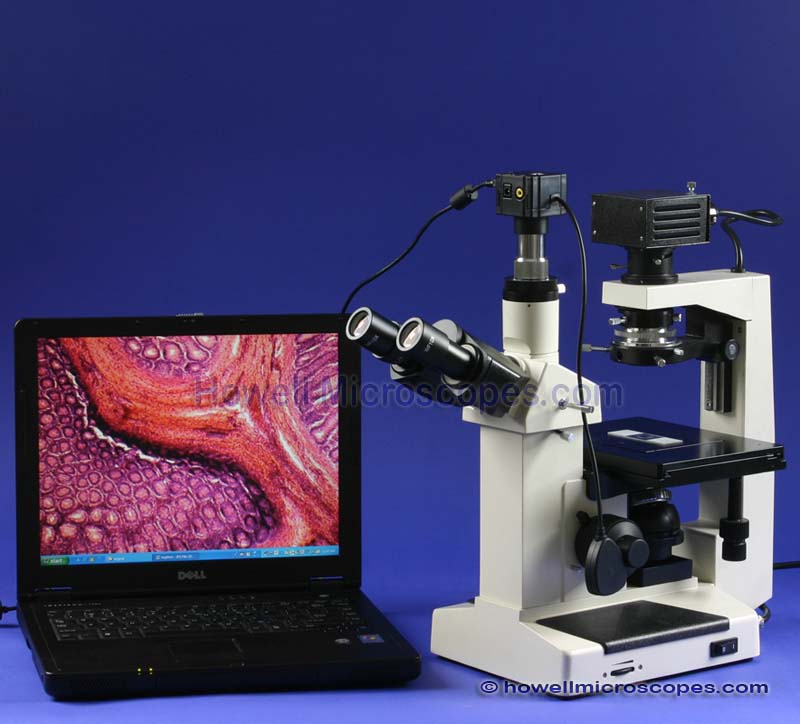

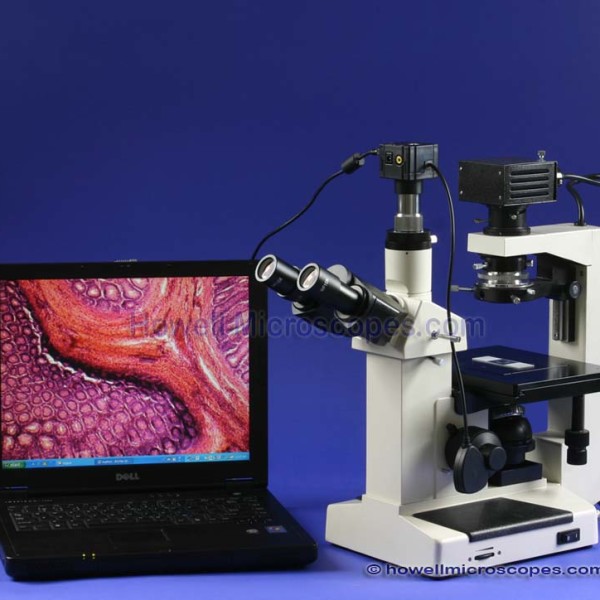

• High Resolution 3.1 MegaPixel Digital Camera System.
• Complete Digital Microscopy Solution Included.
• Capture high resolution digital microscope images, 2048×1536 pixels.

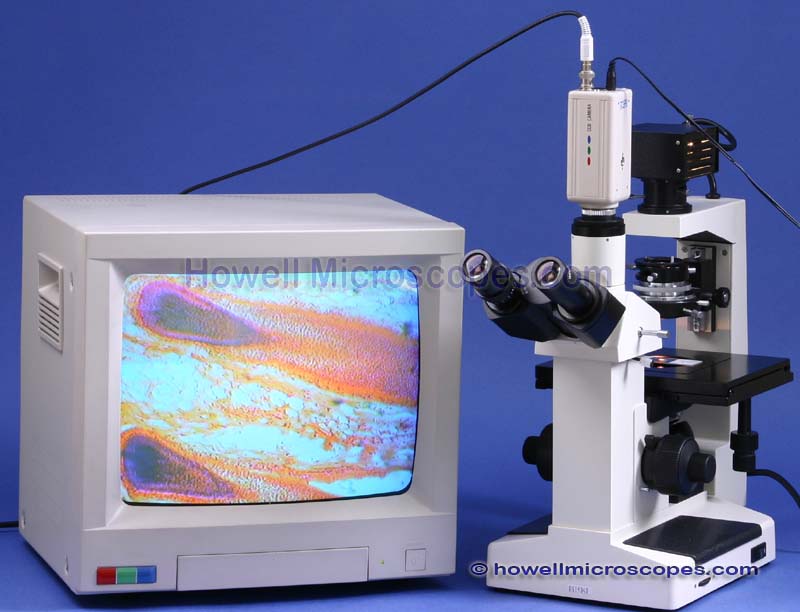

• View and record full motion live video microscope images. Frame size options for video mode: 2048X1536 (up to 11 FPS, depending on PC), 1024 X 768, 640 X 480, 512 X 384.
• Computer connected digital microscope camera connects via USB2.0. Includes USB cable and MS Windows software.
• Color DSP built into camera provides sharp quality color images. Image sensor size is half inch.
• Includes measuring capability with the software.
FREE Bonus
• FREE Microscope Measuring Kit Included: $350 Value!
• Includes: Stage Micrometer with 1mm in 100 divisions, 0.01mm resolution for precise calibration of measuring reticle.
• Includes: Extra WF10x Eyepiece with Built-In Measuring Reticle, X-Scale, 10mm in 100 divisions, 0.1mm Resolution.
• Call Us Today to Discuss Your Measuring Needs and How This Microscope Will Work for You!

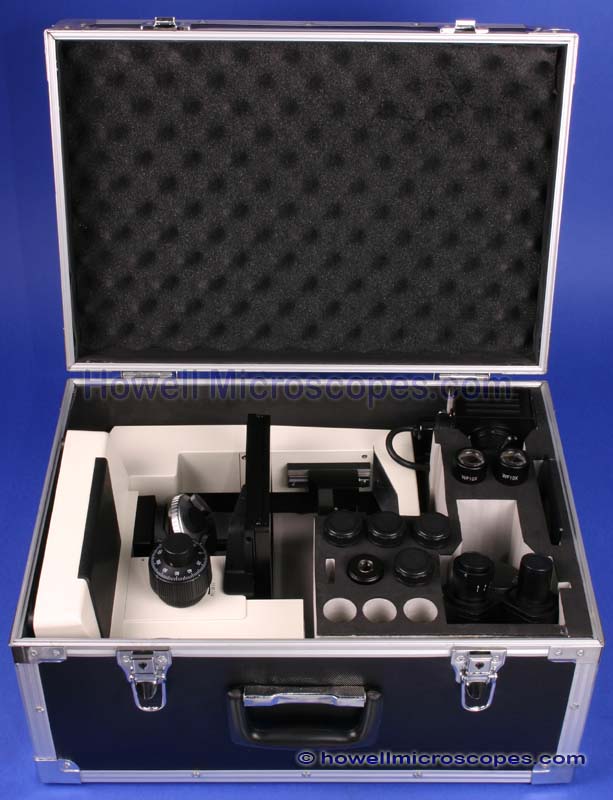

• BONUS: Includes a carrying case with Precut Foam for safe transportation of your precision instrument.
Eyepieces and Magnification
• Three Magnifications: 100x, 250x, and 400x.
• Eyepiece Set Included: Wide Field 10x.

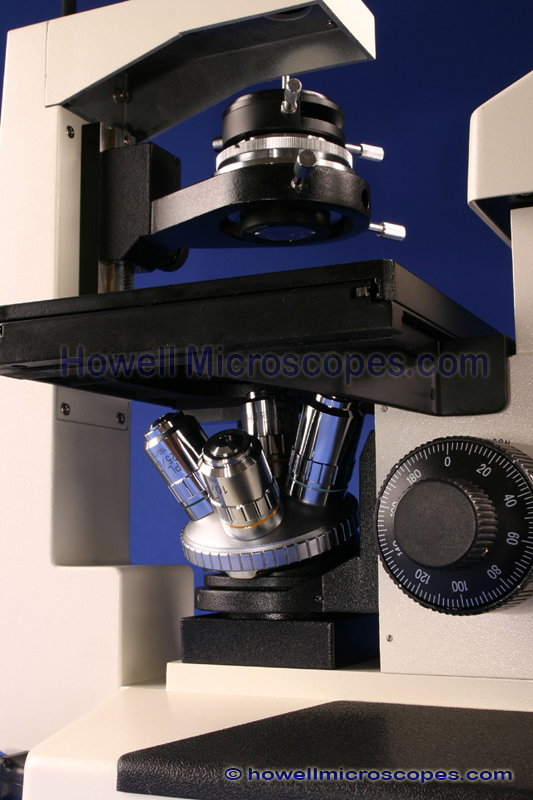

• Four PLAN Long Working Distance DIN Objectives.
• Brightfield Objectives (Three): 10x (0.25 N.A., 8.1mm W.D.), 25x (0.4 N.A., 4.8mm W.D.), 40x (0.6 N.A., 3.3mm W.D.).
• Phase Contrast Objective (One): 10x (0.25 N.A., 8.1mm W.D.).
• Phase Annulus Ring for 10x.
• Objectives Designed for Cover Glass Thickness 1.2mm (bottom of glass dish).
• Optional (Not Included) 25x and 40x Phase Objectives with Phase Annulus Rings.
• These PLAN Objectives are Superior Quality and the Most Expensive. The Achromatic and Semi-Plan as Found on Other Scopes are the Cheaper Quality.
Illumination
• Variable Intensity 20W Halogen Illumination in Upper External Housing.
• Light Collector Field (Iris) Diaphragm with Light Collector Adjustment.
• Lamp Centering Knobs for Precision Alignment of Light Source for Optimal Images.
Head – Interpupillary Distance – Diopter

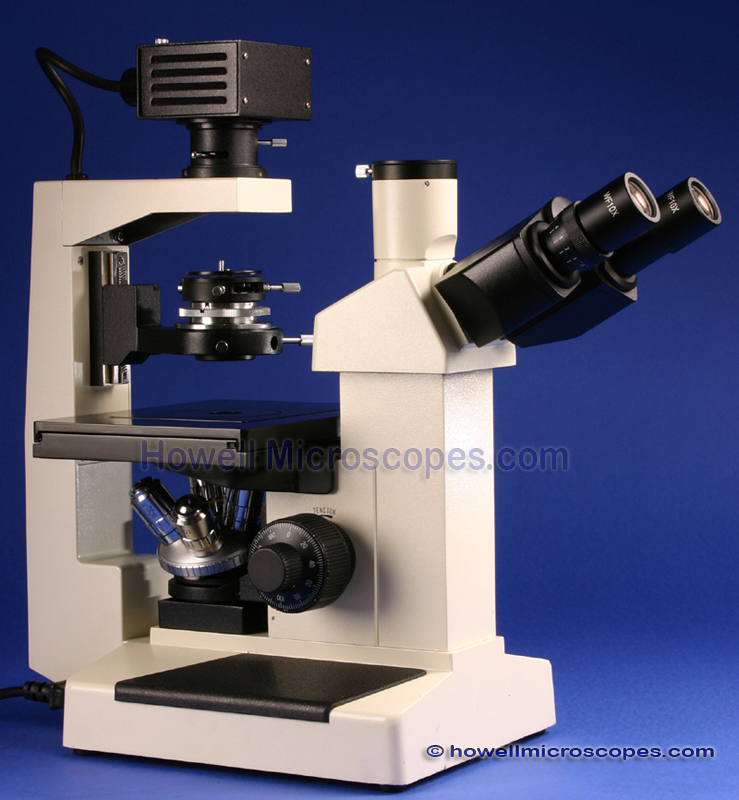

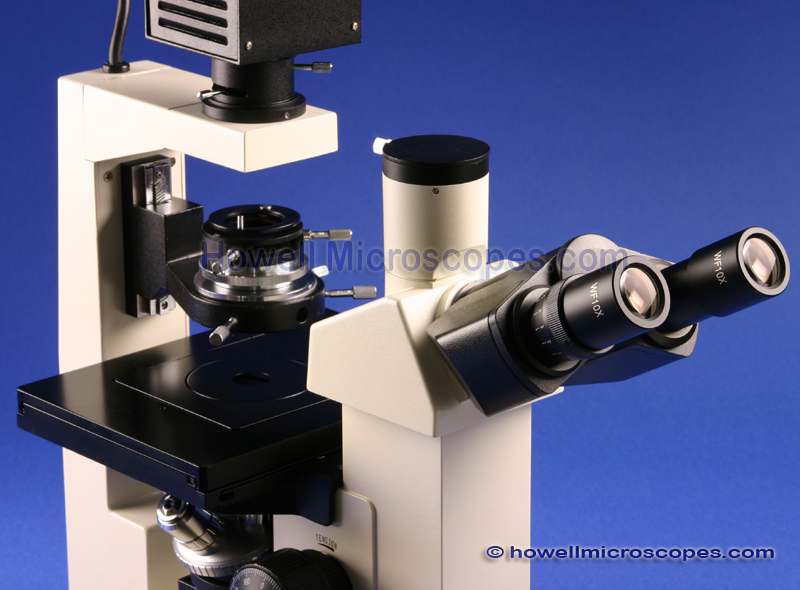

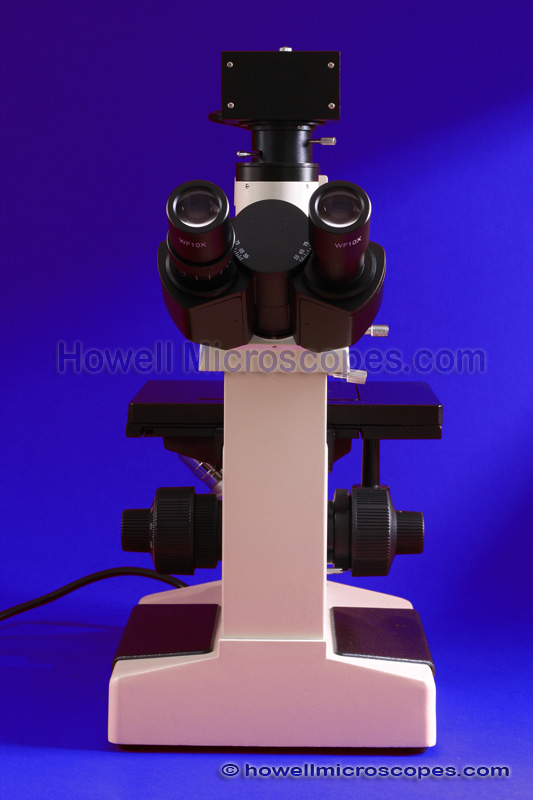

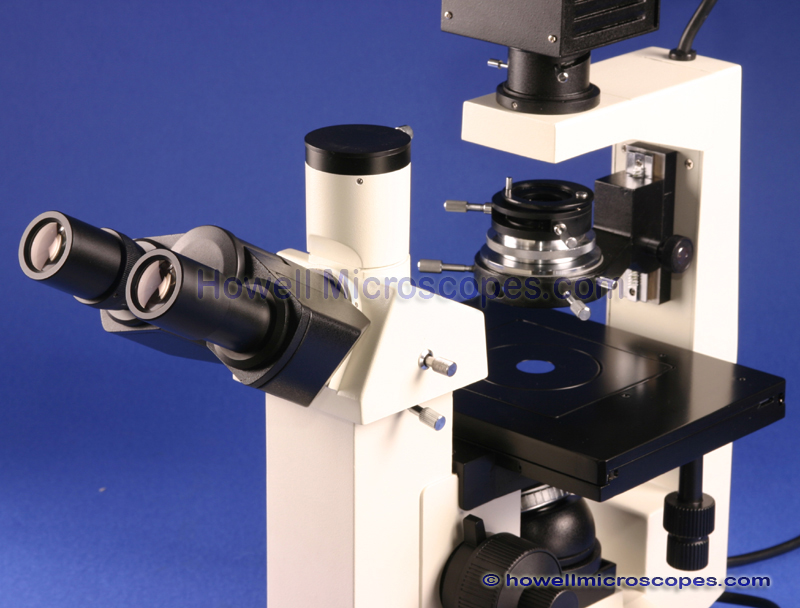

• 30 Degree Inclined Trinocular Head (Easier to View than 45 Deg.).
• Adjusts to the Distance Between your Eyes: 53 to 75mm InterPupillary Distance.
• Diopter Adjustment to Correct for Your Specific Vision Needs.
Condenser – Iris – Filters

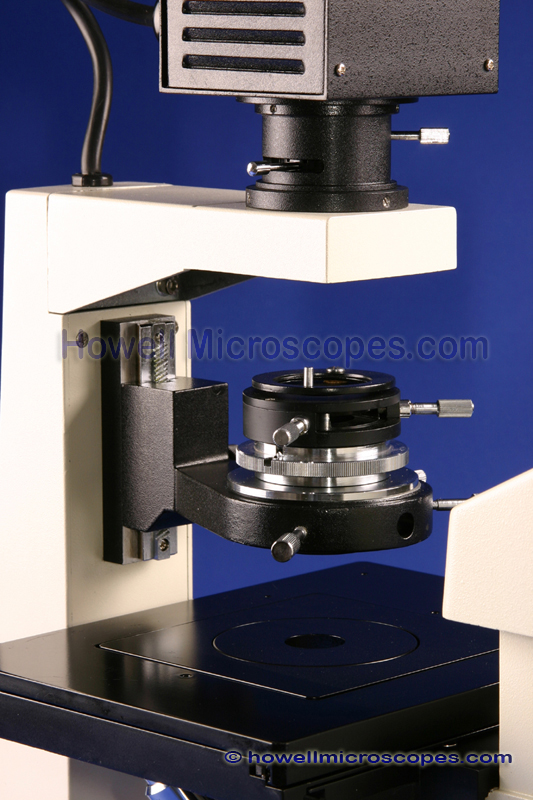

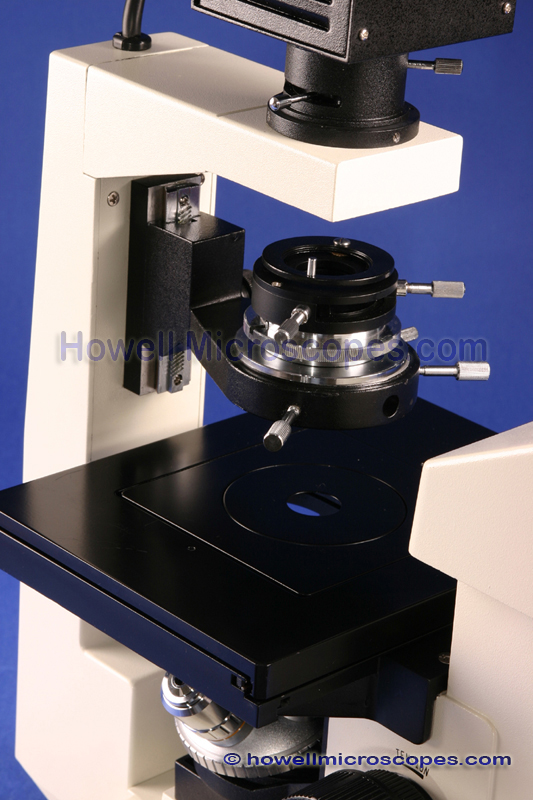

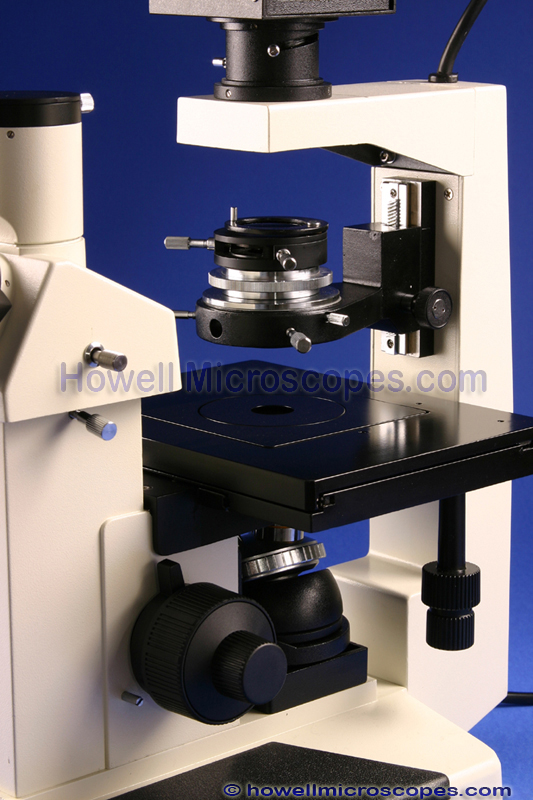

• Above-Stage Long Working Distance (30mm) Condenser, 0.4 N.A., with Iris Diaphragm and Swing-Out Filter Holder.
• Phase Annulus Ring Slot in Condenser with Ring Centering Knobs for Alignment of Phase Rings for Optimal Phase Contrast Performance.
• Condenser Centering Knobs for Precise Positioning of Condenser Over Objective.
• Three Filters Included: Blue, Green, and Frosted White.
• Rack and Pinion Steel Gears with Knob to Easily Move Condenser Up and Down Relative to Stage.
Stage Specifications
• Large Mechanical X-Y Movable Stage: Size 200 x 152mm.
• Low Position Coaxial X-Y Stage Movement Knobs – Range of Movement: 78mm (X-Direction) x 36mm (Y-Direction).
Focusing
• Coaxial Fine and Coarse Focusing Knobs on Both Sides of Microscope.
• Coarse Adjustment Travel Range: 20mm (Objective Nosepiece Movement Distance Up/Down).
• For Optimal Performance when Focusing, the Objectives move Up/Down Instead of the Stage.
• Fine Adjustment Division 0.002mm.
• Adjustable Lock Ring Stop to Limit Coarse Range to Protect Objectives and Specimens.
• Tension Adjustable Coarse Focusing.
Frame – Base – Size – Weight
• Total Overall Height of Microscope: 425 mm.
• Instrument Weight: 21 lbs.
Included Items
• Includes Centering Telescope for Phase Contrast Work.
• Includes: Instruction Manual, Extra Bulb and Fuse.
Other Specifications
• Manufactured under ISO: 9001 Standards.
• 220 VAC Power Requirement.
• High Quality Solid Construction!
• Precision Made Glass Optics!
• Brand New, Never Used!
Manufacturer’s Warranty
• Warranty is 1 years on all microscope equipment.
• The microscope warranty covers problems arising from normal usage.
• We will repair or replace your defective microscopy equipment as needed during the warranty period.
